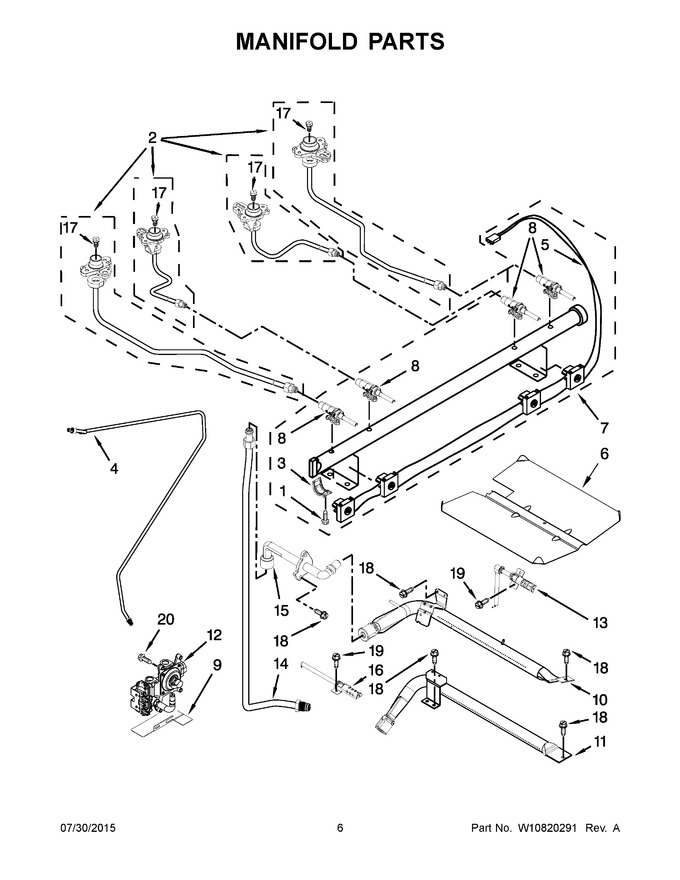

Diagram # Part Number Description Series Find a Video
1 W10295997 Screw, Valve Find a Video
2 W10732137 Assembly, Orifice Holder (15k) Find a Video
3 W10949105 Bracket, Saddle Valve   (Replaces:W10295996) Find a Video
4 W10510125 Tubing, Main Supply Find a Video
5 WPW10295998 Harness, Switch Find a Video
6 3601P336-45 Baffle, Broil Burner Find a Video
7 W10314241 Assembly, Manifold Find a Video
8 WPW10247744 Valve, Gas (right Rear) Find a Video
9 W10224921 Bracket, Aegis Find a Video
10 W10439242 Burner, Broiler Find a Video
11 W10764654 Burner, Bake   (Replaces:W10680035) Find a Video
12 W10919226 Valve, Gas   (Replaces:W10720102) Find a Video
13 WPW10324262 Igniter, Bake Find a Video
14 W10306050 Tubing (broiler Fitting To Valve) Find a Video
15 W10732135 Fitting, Broil Find a Video
16 WPW10333842 Electrode, Broil Find a Video
17 W10178934 Orifice (12k) (right Front) Find a Video
18 W11233072 Screw   (Replaces:3196178) Find a Video
19 3196385 Screw Find a Video
20 WP3368921 Screw   (Replaces:3400701) Find a Video
17A W10732136 Orifice (5k) (right Rear) Find a Video
17B WPW10170507 Orifice (8k) (left Rear) Find a Video
17C WPW10347414 Orifice (15k) (left Front) Find a Video
2A W10732139 Assembly, Orifice Holder (5k) Find a Video
2B W10732140 Assembly, Orifice Holder (9.5k) Find a Video
2C W11197500 Assembly, Orifice Holder (15k)   (Replaces:W10473936) Find a Video
8A WPW10279614 Valve, Gas (left Rear) Find a Video
8B WPW10279615 Valve, Gas (left Front & Right Front) Find a Video
NI N/P Following Parts Not Illustrated Find a Video
WPW10170534 Kit, Lp Conversion Find a Video
