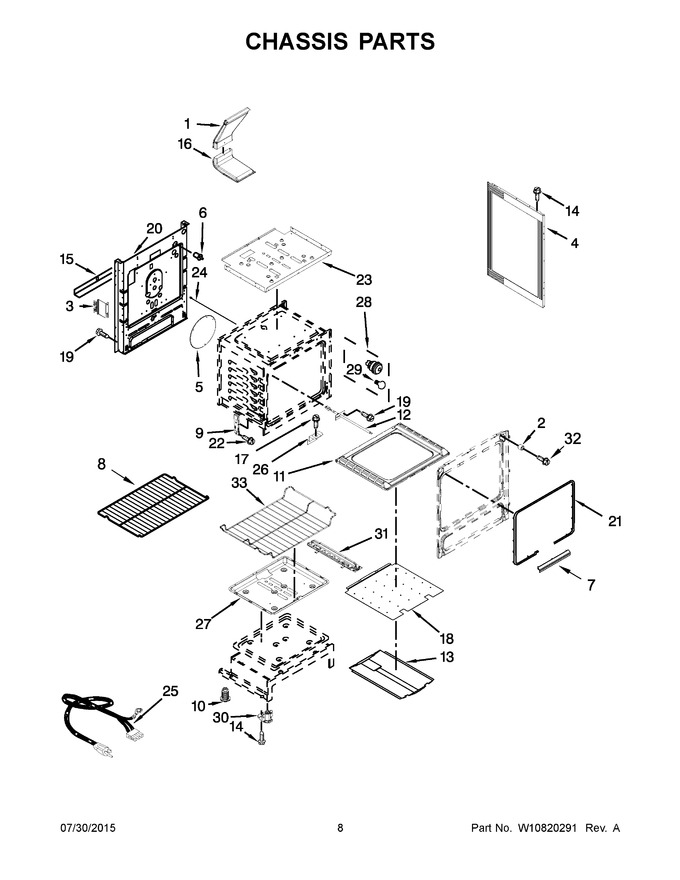

Diagram for 05 - Chassis Parts
05 - Chassis Parts

Diagram for 06 - Door Parts
06 - Door Parts

Diagram for 07 - Drawer Parts
07 - Drawer Parts

Diagram for 08 - Optional Parts (not Included)
08 - Optional Parts (not Included)


New Model Search:



Manufacturer: Maytag

Keyword Search:


< Back to Home

Diagram # Part Number Description Series Find a Video
1 W10314347 Assembly, Flue Find a Video
2 W10877054 Spacer, Door   (Replaces:9758701) Find a Video
3 W10273002 Bracket, Oven Support Find a Video
4 WPW10575396 Panel, Side (white) Find a Video
5 W10346152 Cover, Convection Find a Video
6 WP9757262 Switch, Door   (Replaces:W10627802) Find a Video
7 W10501599 Clip, Front Frame Cover Find a Video
8 WPW10531060 Rack, Oven Find a Video
9 W10647259 Receiver, Hinge   (Replaces:W10289077) Find a Video
10 WPW10058460 Foot, Leveling Find a Video
11 WPW10211368 Bottom, Oven Find a Video
12 W10833885 Sensor   (Replaces:W10586204) Find a Video
13 3601P356-45 Baffle, Bake Burner Find a Video
14 W11233072 Screw   (Replaces:3196178) Find a Video
15 W10435470 Brace, Main Back Find a Video
16 W11243157 Assembly, Flue (upper)   (Replaces:W10311326) Find a Video
17 W11233072 Screw   (Replaces:W10362924) Find a Video
18 W10323077 Diffuser, Flame Find a Video
19 W11233072 Screw   (Replaces:3196178) Find a Video
20 W10224919 Back, Main Find a Video
21 WPW10162385 Gasket, Door Find a Video
22 W10777162 Screw   (Replaces:W10031780) Find a Video
23 WPW10273195 Shield, Heat Find a Video
24 W10273192 Rod, Door Switch Find a Video
25 W11023766 Cord, Power   (Replaces:W10624590) Find a Video
26 W10035900 Support, Oven Bottom Find a Video
27 W11379356 Pan, Bake   (Replaces:W10273204) Find a Video
28 W11281687 Assembly, Light   (Replaces:W10454648) Find a Video
29 8009 Bulb, Oven Light   (Replaces:311255) Find a Video
30 WPW10341186 Assembly, Front Foot Find a Video
31 WPW10306546 Assembly, Base Rail (right)   (Replaces:W10390007) Find a Video
32 W11169708 Screw   (Replaces:3196560) Find a Video
33 WPW10289145 Rack, Oven (gull-wing) Find a Video
31A WPW10306546 Assembly, Base Rail (left)   (Replaces:W10390008) Find a Video
4A WPW10162245 Panel, Side (black) Find a Video
NI 4820F015-59 Insulation, Strap Find a Video
W10526208 Insulation, Wrap Find a Video
W10526209 Insulation, Main Back Find a Video

    View Diagram in Separate Window     Print Icon   Print Part List
  Move Mouse over Availability column to View Location Quantities-on-Hand

Diagram for MGR8600DH1
