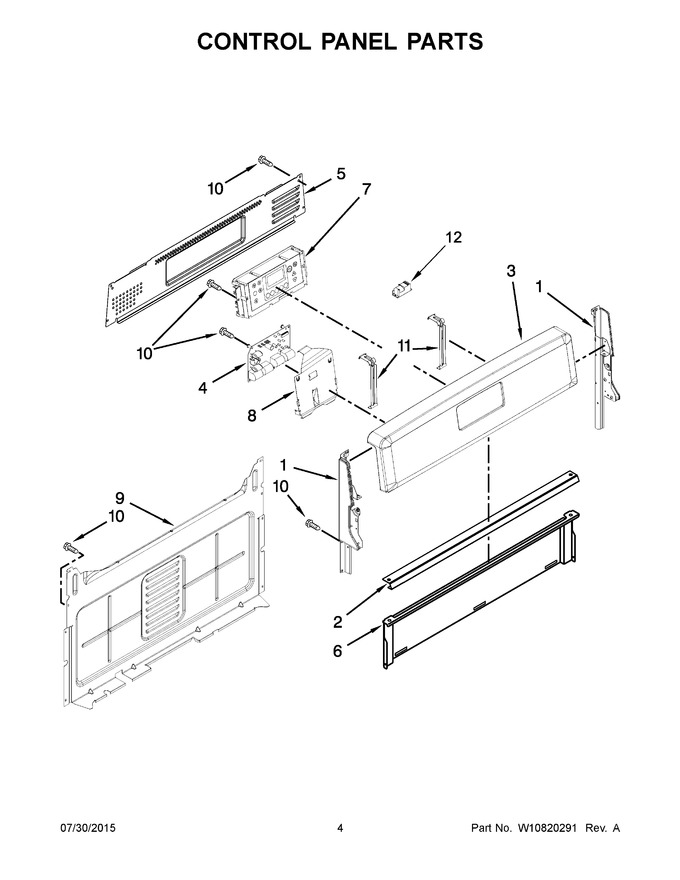

Diagram # Part Number Description Series Find a Video
1 W11219365 Endcap (white (left))   (Replaces:W10184433) Find a Video
2 W10516123 Bracket, Console Mounting Find a Video
3 W10655858 Console (white) Find a Video
4 WPW10511278 Module, Spark Dsi Find a Video
5 W10198745 Cover, Upper Find a Video
6 W10192841 Shield, Heat Find a Video
7 WPW10655859 Control, Lcc195 (white) Find a Video
8 W10516463 Bracket, Dsi Find a Video
9 W10184370 Cover, Back Find a Video
10 W11233072 Screw   (Replaces:3196178) Find a Video
11 W10324410 Bracket, Control Find a Video
12 WPW10110491 Module, Spark   (Replaces:W10110488) Find a Video
1A W11219664 Endcap (black (left))   (Replaces:W10184437) Find a Video
1B W11219370 Endcap (white (right))   (Replaces:W10184434) Find a Video
1C W11219665 Endcap (black (right))   (Replaces:W10184438) Find a Video
3A WPW10655861 Console (black) Find a Video
3B WPW10655864 Console (stainless) Find a Video
7A WPW10655862 Control, Lcc195 (black) Find a Video
7B WPW10655865 Control, Lcc195 (stainless) Find a Video
