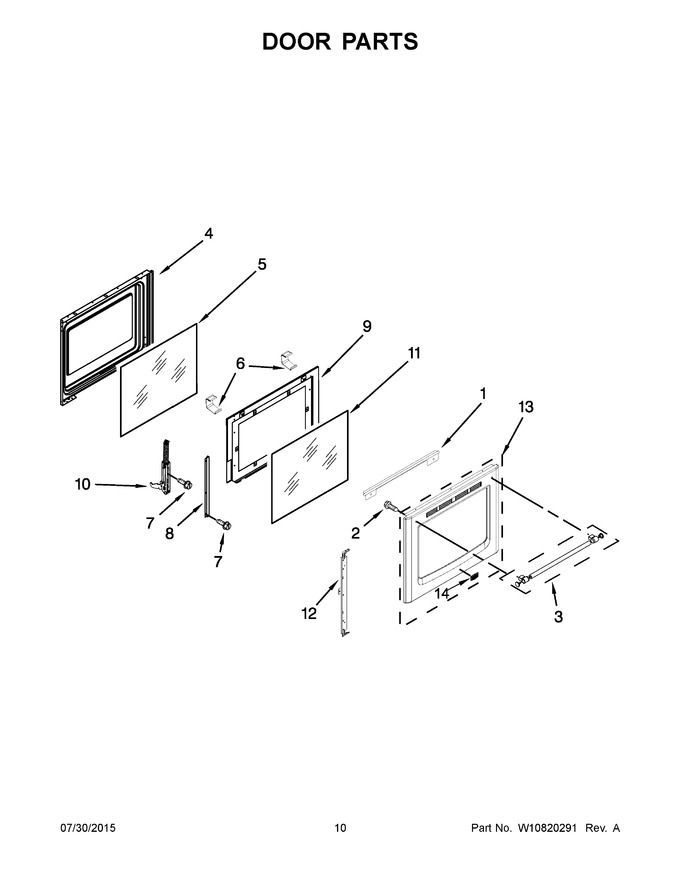

Diagram for 06 - Door Parts
06 - Door Parts
Diagram for 07 - Drawer Parts
07 - Drawer Parts
Diagram for 08 - Optional Parts (not Included)
08 - Optional Parts (not Included)

New Model Search:


Manufacturer: Maytag

Keyword Search:

< Back to Home

Diagram # Part Number Description Series Find a Video
1 WPW10330075 Trim, Vent (white) Find a Video
2 WPW10317886 Screw Find a Video
3 WPW10665831 Handle, Door (stainless) Find a Video
4 WPW10297318 Liner, Door Find a Video
5 WPW10300487 Glass, Inner Find a Video
6 W10137382 Clip, Panel Find a Video
7 WP3196175 Screw   (Replaces:3196165) Find a Video
8 W10294852 Bracket, Glass Find a Video
9 W10294853 Bracket, Glass Liner Find a Video
10 WPW10388635 Hinge, Door (active) Find a Video
11 WPW10615599 Glass, Outer Find a Video
12 W11116956 Rail, Door   (Replaces:W10294851) Find a Video
13 WPW10655831 Skin, Door (white) Find a Video
14 W10911300 Badge   (Replaces:W10636267) Find a Video
13A WPW10655834 Skin, Door (black) Find a Video
13B WPW10655838 Skin, Door (stainless) Find a Video
1A W10339814 Trim, Vent (black) Find a Video
