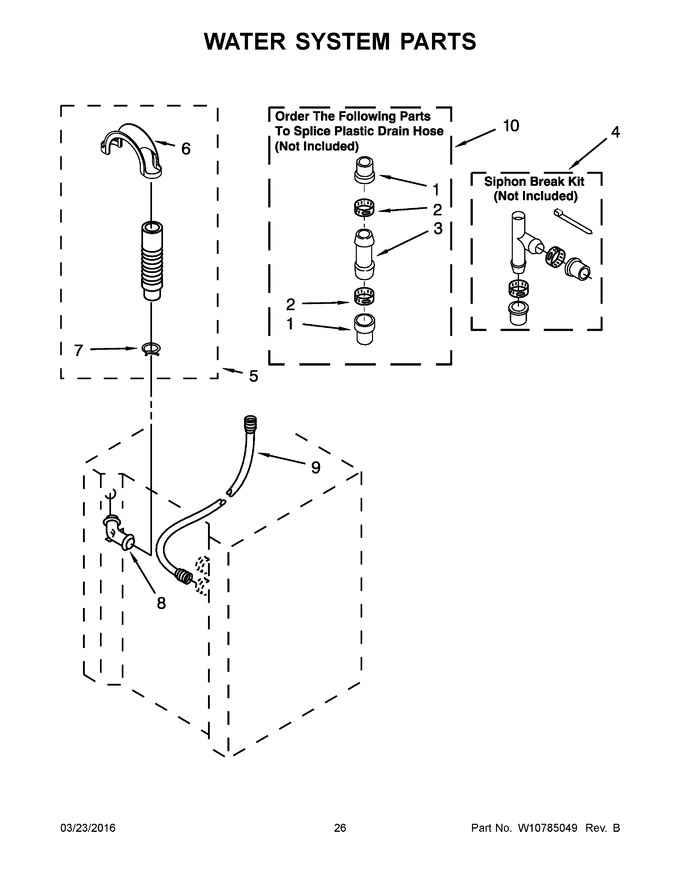

14 - Water System Parts


15 - 3402855 Burner Assembly


16 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Find a Video
1	285321		Sleeve Kit, (contains 2 Sleeves)
2	WP285655		Clamp, Hose   (Replaces:65349)
3	WP16272		Connector, Straight
4	285320		Siphon Break Kit
5	285664		Drain Hose Assembly   (Replaces:661575)
6	WP8577378		U-bend, Drain Hose
7	WP3357331		Clamp, Hose
8	W11213338		Connector, Hose   (Replaces:8557915)
9	WP89503		Hose, Inlet   (Replaces:3354858)
10	285442		Connector Kit, Plastic Drain Hose
NI	N/P		(parts Not Shown)
	285666		Hose, Corrugated Plastic Drain (10 Ft)   (Replaces:661577)
	WPW10108350		Hose, Corrugated Plastic Drain (6 1/2 Ft)
