01 - Cover Sheet

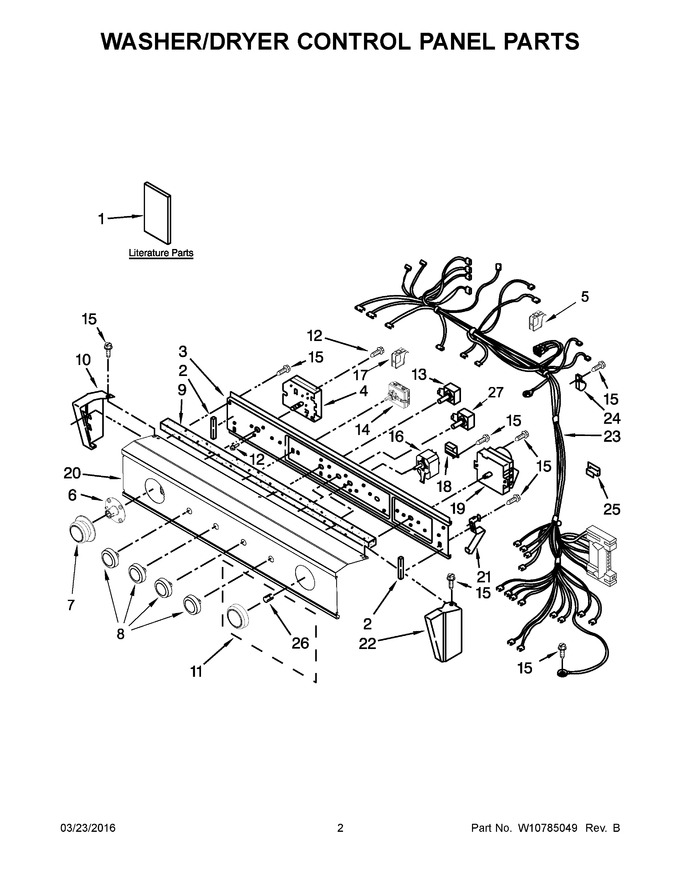

02 - Washer/dryer Control Panel Parts


03 - Dryer Front Panel And Door Parts


04 - Dryer Cabinet And Motor Parts


05 - Dryer Bulkhead Parts


06 - Dryer Support And Washer Harness Parts


07 - Washer Top And Lid Parts


08 - Washer Cabinet Parts


09 - Brake, Clutch, Gearcase, Motor And Pump Parts


10 - Machine Base Parts


11 - Agitator, Basket And Tub Parts


12 - Gearcase Parts


13 - Brake And Drive Tube Parts


14 - Water System Parts


15 - 3402855 Burner Assembly


16 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Find a Video
1	W10761051		Installation Instructions
2	3390688		Spacer, Foam Pad
3	W10732070		Bracket, Control
4	WPW10113804		Timer Assembly (60 Hz.)
5	W10134186		Clip, Harness
6	W11174845		Dial, Timer   (Replaces:W10721959)
7	W11104717		Knob, Timer (washer) (white)   (Replaces:W10721961)
8	W11034979		Assembly, Control Knob (white)   (Replaces:W10722056)
9	8521965		Gasket, Console
10	W10891649		End Cap (left) (white)   (Replaces:3389464)
11	W11116863		Knob, Timer (dryer) (white)   (Replaces:W10721955)
12	W10915367		Screw   (Replaces:3400808)
13	WPW10544357		Switch, Pressure (3 Level)
14	W11103597		Switch, Temperature   (Replaces:W10711272)
15	WP90767		Screw
16	WP3404233		Switch, Push-to-start
17	W10210799		Clip, Harness
18	WP694419		Buzzer, Mini
19	W10854240		Timer Assembly   (Replaces:W10642934)
20	W10696103		Panel, Control (white)
21	3389453		Bracket, Hinge
22	3389456		End Cap (right) (white)
23	W10640721		Harness, Dryer
24	3390604		Clamp, Harness
25	W10134185		Clip, Harness   (Replaces:3390422)
26	WP8536939		Clip, Spring
27	W10851055		Switch, Rotary   (Replaces:3949188)
1A	W10746870		Use And Care Guide
1B	W10757738		Energy Guide
1C	W10726336		Wiring Diagram
