01 - Cover Sheet


02 - Washer/dryer Control Panel Parts


03 - Dryer Front Panel And Door Parts


04 - Dryer Cabinet And Motor Parts


05 - Dryer Bulkhead Parts


06 - Dryer Support And Washer Harness Parts


07 - Washer Top And Lid Parts


08 - Washer Cabinet Parts


09 - Brake, Clutch, Gearcase, Motor And Pump Parts


10 - Machine Base Parts


11 - Agitator, Basket And Tub Parts


12 - Gearcase Parts


13 - Brake And Drive Tube Parts


14 - Water System Parts


15 - 3402855 Burner Assembly


16 - Optional Parts (not Included)

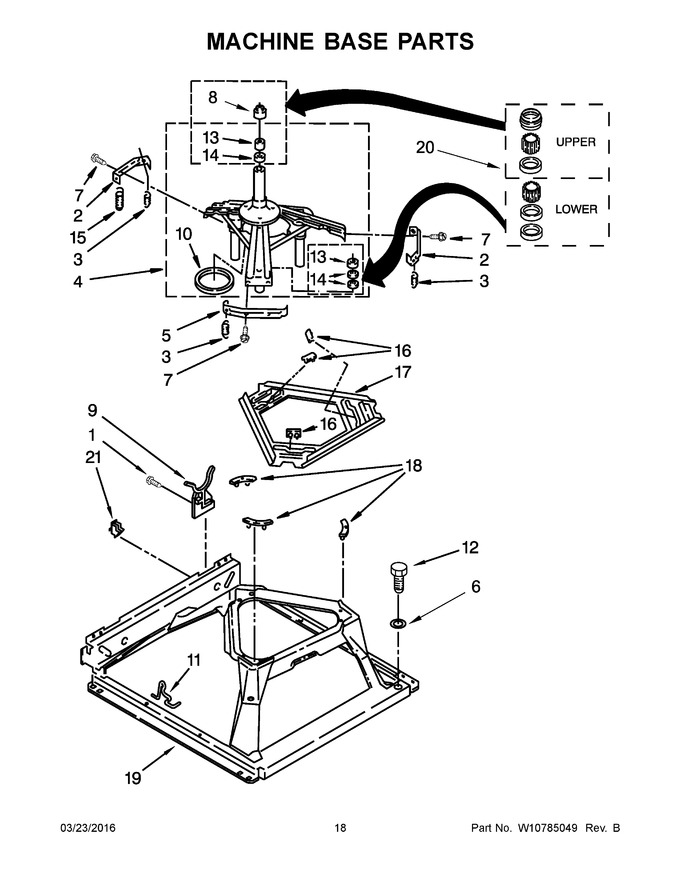

Diagram #	Part Number		Description	Series	Find a Video
1	WP681414		Screw   (Replaces:343641)
2	WP64067		Bracket, Spring Outer
3	WP63907		Spring, Suspension
4	280184		Support & Break, Tub   (Replaces:8575214)
5	WP64065		Bracket, Spring Outer (left Front)
6	3349340		Washer
7	W10846509		Screw   (Replaces:3400076)
8	WP8577376		Seal, Centerpost
9	3350506		Retainer, Hose
10	WP63134		Ring, Sound Deadening
11	WPW10145155		Retainer, Suspension Spring
12	WP3400501		Screw, Shoulder
13	WP8546455		Bearing, Centerpost
14	W11095997		Seal, Shaft   (Replaces:357409)
15	WPW10250667		Spring, Counterweight (must Be Ordered When Replacing Drive Motor)
16	285219		Pad, Plate   (Replaces:62568)
17	WP3946509		Plate, Suspension
18	285744		Pad, Base   (Replaces:3363660)
19	3349343		Base Assembly
20	285203		Bearing
21	3349749		Restrainer, Base
