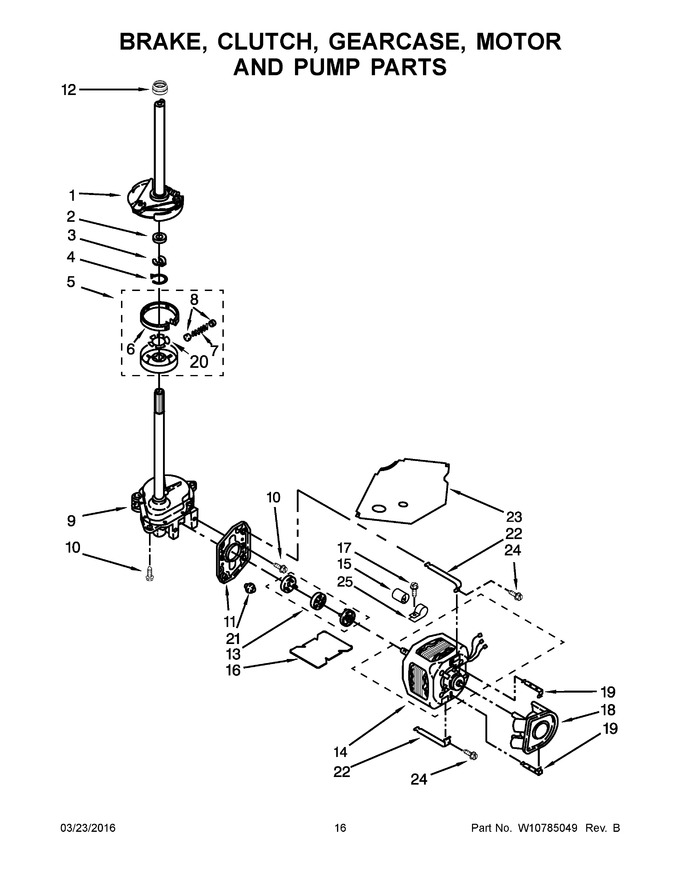

09 - Brake, Clutch, Gearcase, Motor And Pump Parts


10 - Machine Base Parts


11 - Agitator, Basket And Tub Parts


12 - Gearcase Parts


13 - Brake And Drive Tube Parts


14 - Water System Parts


15 - 3402855 Burner Assembly


16 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Find a Video
1	W10820043		Brake & Drive Tube (complete)   (Replaces:388951)
2	WP63292		Washer, Spin Tube Thrust
3	WPW10080230		Ring, Spin Tube Support   (Replaces:62697)
4	285353		Ring, Retaining   (Replaces:63283)
5	285785		Clutch (complete)   (Replaces:3951311)
6	285790		Band And Lining Assembly   (Replaces:3951308)
7	WP3946792		Spring & Damper Assembly
8	WP62646		Cap, Clutch Spring
9	3360629		Gearcase (complete)   (Replaces:8532118)
10	WP3400516		Screw   (Replaces:3357334)
11	WP62611		Plate, Motor Mount To Gearcase
12	WP8577374		Seal, Centerpost
13	285753A		Coupling, Motor And Isolation   (Replaces:3364003)
14	WP661600		Motor, 2-speed
15	WP8572717		Capacitor, Motor Start
16	8316060		Shield, Motor
17	WP3390631		Screw   (Replaces:62863)
18	WP3363892		Pump, Complete
19	WP8546127		Retainer, Pump
20	WP3355454		Clip, Anti-rattle
21	WP62691		Grommet, Motor
22	WPW10086010		Retainer, Motor
23	W10838408		Shield, Tub To Motor   (Replaces:W10795111)
24	WP273556		Screw   (Replaces:3387485)
25	3949496		Clip, Capacitor
