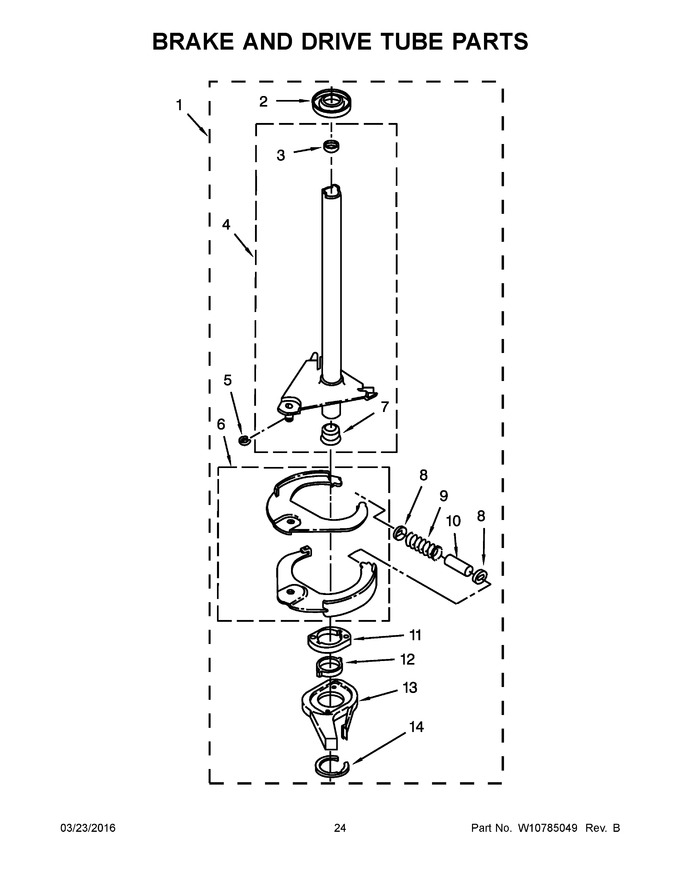

Diagram #	Part Number		Description	Series	Find a Video
1	W10820043		Brake & Drive Tube (complete)   (Replaces:388951)
2	WP62658		Ring, Thrust
3	WP356427		Seal, Drive Tube
4	WP64208		Tube, Basket Drive   (Replaces:64027)
5	W10083190		Ring, "e   (Replaces:64035)
6	285438		Shoe, Brake   (Replaces:64232)
7	WP8546462		T Bearing, Spin Tube
8	285658		Cap, Brake Spring   (Replaces:3353956)
9	WP62647		Spring, Brake
10	285658		Sleeve, Brake Spring   (Replaces:3355360)
11	WP8546461		Cam, Brake Release
12	WP63022		Sleeve, Cam
13	285790		Driver, Brake Cam   (Replaces:64194)
14	W11033823		Ring, Retaining   (Replaces:90368)
NI	N/P		(parts Not Shown)
	285208		Lubricant (use Only In Brake Shoe Assembly On Roller And Pin)
