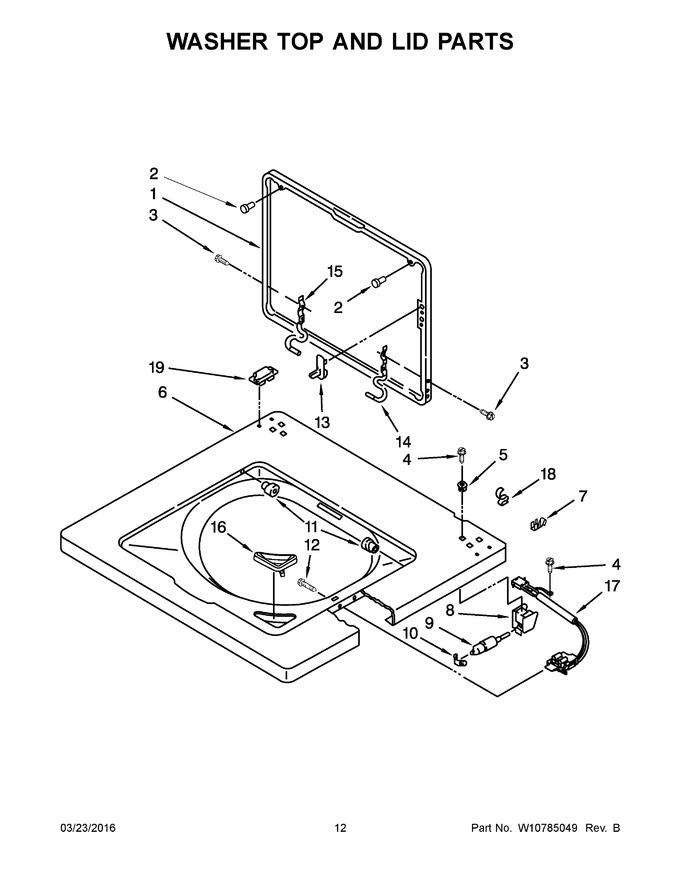

07 - Washer Top And Lid Parts


08 - Washer Cabinet Parts


09 - Brake, Clutch, Gearcase, Motor And Pump Parts


10 - Machine Base Parts


11 - Agitator, Basket And Tub Parts


12 - Gearcase Parts


13 - Brake And Drive Tube Parts


14 - Water System Parts


15 - 3402855 Burner Assembly


16 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Find a Video
1	WPW10193874		Lid   (Replaces:W10173243)
2	WP9724509		Bumper, Lid
3	WPW10119828		Screw   (Replaces:W10119872)
4	WP681414		Screw   (Replaces:343641)
5	WP692400		Screw Grommet
6	3349817		Top, Console
7	W10113937		Clip, Grounding
8	3354020		Bracket, Mounting
9	WP3350152		Retainer, Lid Assembly
10	3350828		Clip, Cylinder Retainer
11	WP21258		Bearing, Lid Hinge
12	WP3356311		Screw And Washer
13	WP358684		Strike, Lid Switch
14	3350101		Hinge (rh)
15	3350102		Hinge (lh)
16	WP3362952		Dispenser, Bleach
17	WP3355458		Switch, Lid
18	WP90016		Clip, Harness
19	W11116924		Locator, Top   (Replaces:W10134768)
