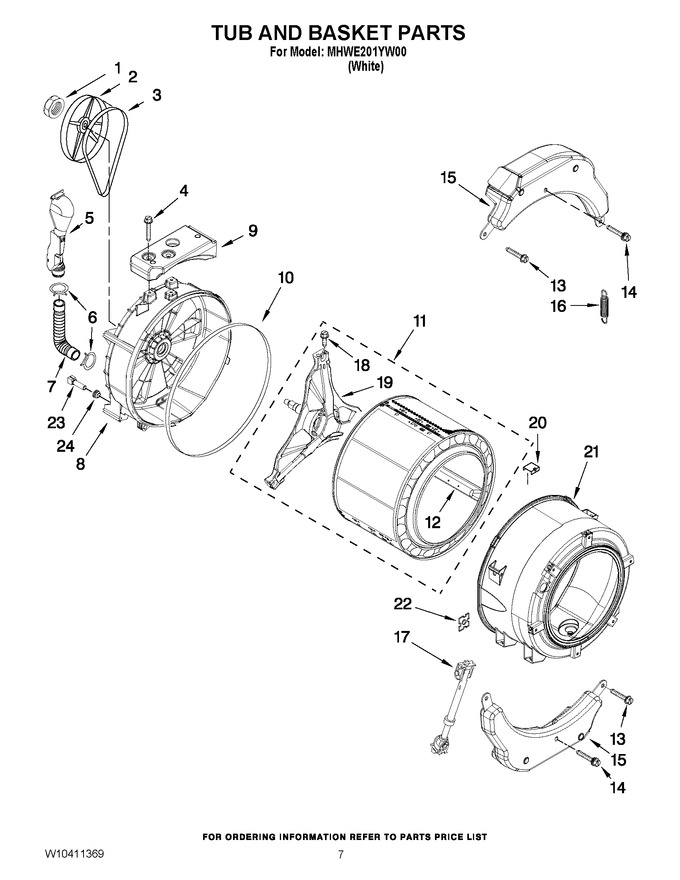

Diagram for 06 - Tub And Basket Parts
06 - Tub And Basket Parts

Diagram for 07 - Optional Parts (not Included)
07 - Optional Parts (not Included)


New Model Search:



Manufacturer: Maytag

Keyword Search:


< Back to Home

Diagram # Part Number Description Series Find a Video
1 WPW10283361 Nut, Pulley   (Replaces:8533999) Find a Video
2 WP8540088C Pulley Find a Video
3 WPW10260319 Belt, Drive Find a Video
4 W11028021 Screw, Rear Counterweight   (Replaces:W10246531) Find a Video
5 W10142720 Pipe, Ventilation Find a Video
6 8540010 Clamp, Vent Hose Find a Video
7 W10583497 Hose, Exhaust   (Replaces:8540019) Find a Video
8 W11239040 Tub, Rear (includes Items 10 & 22)   (Replaces:W10200751) Find a Video
9 WPW10200747 Counterweight, Rear Find a Video
10 WPW10111158 Gasket, Tub   (Replaces:8540090) Find a Video
11 WPW10205253 Basket, Complete Find a Video
12 WPW10112972 Baffle, Tub Find a Video
13 W10182109 Bolt, Counterweight   (Replaces:W10094780) Find a Video
14 WPW10259288 Bolt Assembly, Counterweight Center Hole Find a Video
15 WPW10223198 Counterweight, Front Find a Video
16 280159 Spring, Suspension (set Of 2)   (Replaces:W10010360) Find a Video
17 W10822553 Shock Absorber   (Replaces:W10015830) Find a Video
18 WP8540382 Screw Find a Video
19 W10202464 Crosspiece Asm Find a Video
20 WP8540092 Clamp, Tub Find a Video
21 W10313497 Tub, Front (includes Items 10 & 22)   (Replaces:W10289875) Find a Video
22 WP8182512 Nut, Push-in   (Replaces:8540072) Find a Video
23 WPW10467289 Negative Thermistor Control   (Replaces:W10176659) Find a Video
24 W10609567 Seal, Rubber   (Replaces:8540766) Find a Video
