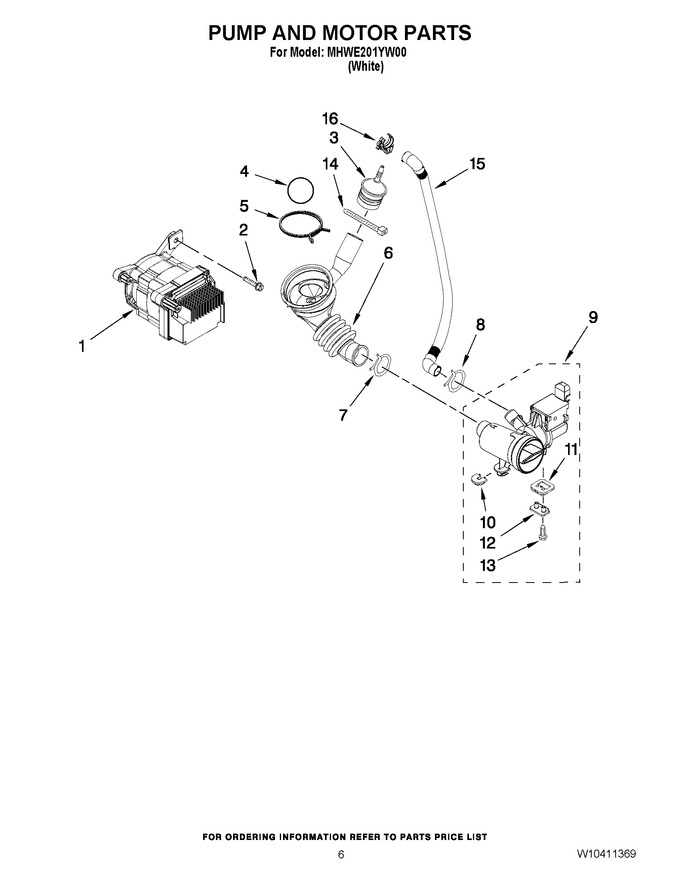

View Diagram in Separate Window
Print Part List
Move Mouse over Availability column to View Location Quantities-on-Hand
Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | WPW10315848 | Motor, Drive | ||||
2 | 8540134 | Bolt, Motor | ||||
3 | WPW10405608 | Air Trap | ||||
4 | 8540013 | Ball | ||||
5 | WP696392 | Clamp (Replaces:8181734) | ||||
6 | W11366249 | Hose, Tub To Pump (Replaces:8540012) | ||||
7 | WP616099 | Clamp, Hose (Replaces:370448) | ||||
8 | WP285655 | Clamp, Drain Hose (Replaces:W10245724) | ||||
9 | WPW10730972 | Pump (complete) (Replaces:W10130913) | ||||
10 | W10034820 | Foot, Rubber (slider) | ||||
11 | W10034830 | Foot, Rubber (lock) | ||||
12 | 8540033 | Cap, Lock Foot | ||||
13 | 8533964 | Screw, 10-16 X 1.25 | ||||
14 | WP2262071 | Cable Tie | ||||
15 | WPW10272563 | Hose, Drain- Inner | ||||
16 | 8182209 | Retainer, Drain Hose (Replaces:W10003290) |
View Diagram in Separate Window
Print Part List
Move Mouse over Availability column to View Location Quantities-on-Hand
