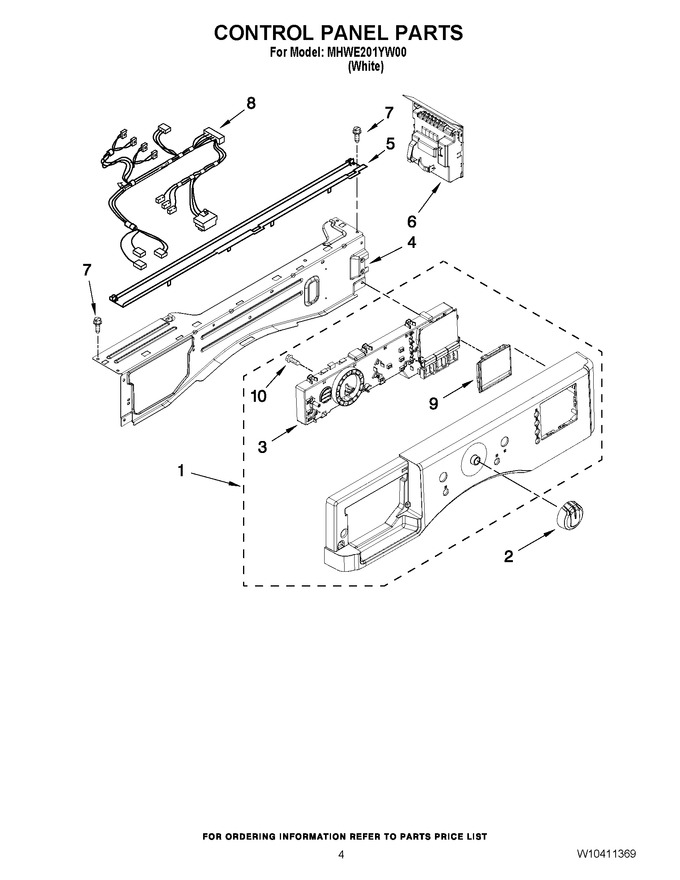

Diagram #	Part Number		Description	Series	Find a Video
1	WPW10359218		Console
2	WPW10251381		Knob, Control
3	WPW10362704		User Interface
4	W10846488		Brace, Top Front   (Replaces:W10240776)
5	WP8540839		Channel, Water
6	WPW10459454		Microcomputer, Machine Control   (Replaces:W10373842)
7	WP489442		Screw, 8-18 X 5/8   (Replaces:W10015090)
8	WPW10323099		Harness, Main Wiring
9	W10215794		Window, Display
10	W10006580		Screw, M3-1.12x12
