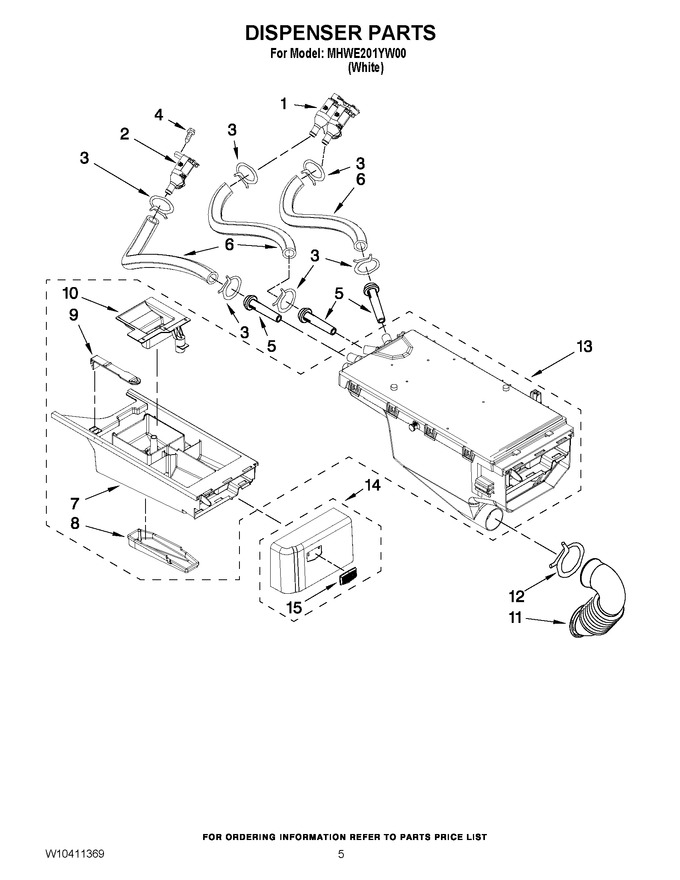

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WPW10212596 | Valve, Water Inlet (double) |  |
|||
| 2 | WPW10212598 | Valve, Water Inlet (single) | |
|||
| 3 | 370450 | Clamp, Hose | |
|||
| 4 | W11230114 | Screw, Valve (Replaces:8540513) | |
|||
| 5 | WP8183181 | Nozzle, Inlet | |
|||
| 6 | W10803052 | Hose, Valve To Dispenser (Replaces:W10212611) | |
|||
| 7 | WP8540402 | Drawer, Detergent | |
|||
| 8 | WP8540399 | Cover, Detergent Drawer | |
|||
| 9 | WP8181721 | Hook, Drawer (Replaces:W10003170) | |
|||
| 10 | WP8540429 | Siphon, Bleach/softener | |
|||
| 11 | W11366227 | Hose, Dispenser To Tub (Replaces:8540063) | |
|||
| 12 | 8281276 | Clamp, Hose | |
|||
| 13 | WPW10399327 | Dispenser, Complete | |
|||
| 14 | W10772276 | Handle, Drawer (Replaces:W10237414) | |
|||
| 15 | W10177245 | Badge Assembly | |
