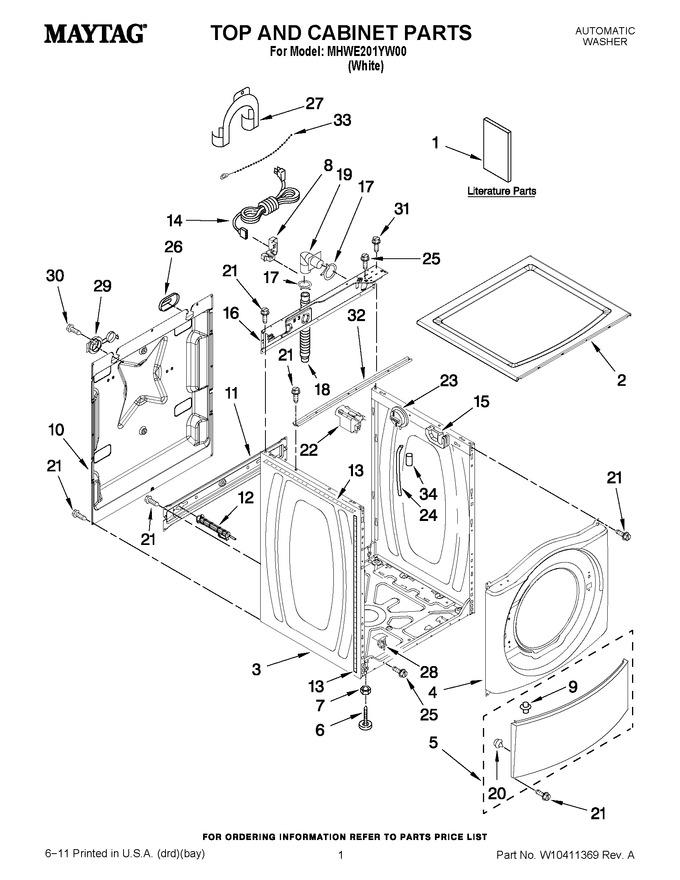

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | W10408696 | Installation Instructions | ||||
W10394275 | Use & Care Guide | |||||
W10385295 | Tech Sheet | |||||
W10404647 | Energy Guide | |||||
2 | WPW10303994 | Top | ||||
3 | W10410294 | Cabinet | ||||
4 | WPW10306505 | Panel, Front | ||||
5 | WP8540664 | Toe Panel (Replaces:8540813) | ||||
6 | W10862938 | Foot, Leveling (Replaces:W10245373) | ||||
7 | WP3359452 | Nut, Lock | ||||
8 | 8182635 | Strain Relief, Power Cord (Replaces:W10110676) | ||||
9 | 8518891 | Rivet | ||||
10 | WPW10258341 | Panel, Rear | ||||
11 | W10189657 | Brace, Transport | ||||
12 | W10763471 | Bolt, Shipping (set Of 4) (Replaces:W10251449) | ||||
13 | WP8318396A | Seal, Foam-iec (Replaces:8318396) | ||||
14 | WPW10205499 | Cord, Power (Replaces:W10205500) | ||||
15 | 8540644 | Bracket-suspension Spring | ||||
16 | W10244560 | Brace, Rear (Replaces:W10299495) | ||||
17 | WP356138 | Clamp, Hose | ||||
18 | WP8181737 | Hose, Drain (outer) (Replaces:W10281257) | ||||
19 | WP8181738 | Connector, Drain Hose (Replaces:W10003260) | ||||
20 | 238614 | Bumper | ||||
21 | WP489442 | Screw, 8-18 X 5/8 (Replaces:W10015090) | ||||
22 | WPW10367632 | Filter, Interference (Replaces:W10339736) | ||||
23 | W11417623 | Switch, Pressure (Replaces:W10239066) | ||||
24 | W11252474 | Hose, Pressure Switch (Replaces:8540294) | ||||
25 | 8540479 | Screw, Grounding | ||||
26 | WP8540268 | Cover, Transport | ||||
27 | WPW10280024 | U-bend, Drain Hose (Replaces:8540021) | ||||
28 | WPW10085220 | Microswitch | ||||
29 | W11116978 | Sleeve, Cord Support (Replaces:8540728) | ||||
30 | 8182201 | Screw, 3 X 8 Mm (Replaces:8540727) | ||||
31 | 8540329 | Screw | ||||
32 | WP8540721 | Brace, Top | ||||
33 | WPW10339879 | Cable Tie (Replaces:3347868) | ||||
34 | 2162499 | Sleeve, Pressure Switch Hose (Replaces:2161302) |
