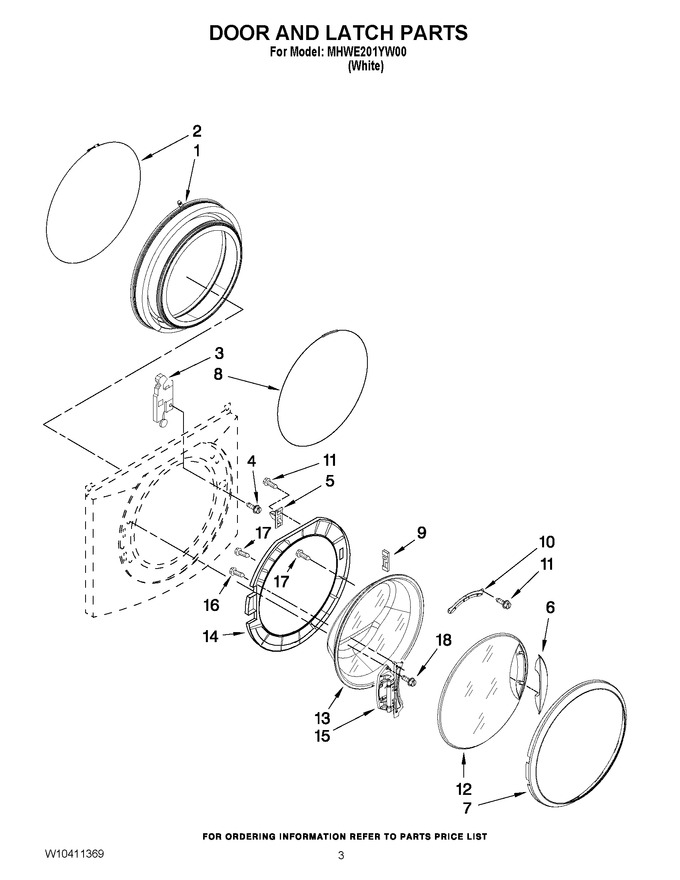

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WPW10381562 | Bellow (Replaces:W10290499) |  |
|||
| 2 | WP8540108 | Clamp, Bellow To Tub | |
|||
| 3 | WPW10253483 | Lock, Door | |
|||
| 4 | WP8540725 | Screw | |
|||
| 5 | WP8540221 | Hook, Door | |
|||
| 6 | W10165344 | Handle, Door (Replaces:8540587) | |
|||
| 7 | WP8540537 | Trim Ring, Outer Door | |
|||
| 8 | W11032829 | Clamp, Bellow To Front Panel (Replaces:W10217563) | |
|||
| 9 | WP8540115 | Clamp, Support | |
|||
| 10 | 8540114 | Clamp, Glass | |
|||
| 11 | W11230114 | Screw (Replaces:8540513) | |
|||
| 12 | WPW10354801 | Frame, Door Front Assembly | |
|||
| 13 | WPW10388315 | Glass, Door (Replaces:W10205548) | |
|||
| 14 | WPW10138523 | Frame, Door Back Support | |
|||
| 15 | WPW10118967 | Hinge, Door | |
|||
| 16 | WP8181660 | Screw (Replaces:8540284) | |
|||
| 17 | WP8540282 | Screw | |
|||
| 18 | WP489442 | Screw (Replaces:W10015090) | |
