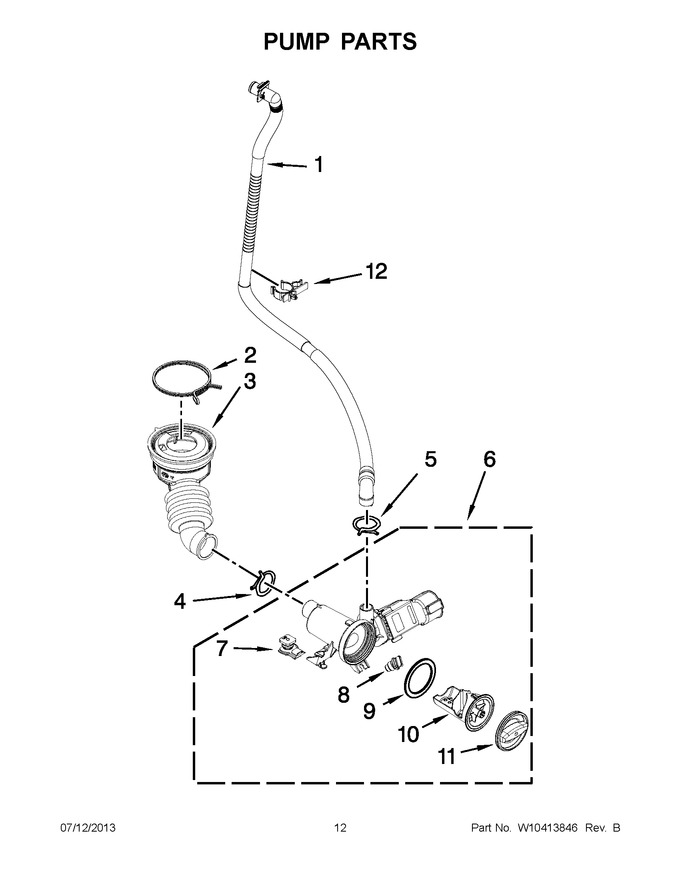

Diagram for 06 - Pump Parts
06 - Pump Parts

Diagram for 07 - Optional Parts (not Included)
07 - Optional Parts (not Included)


New Model Search:



Manufacturer: Maytag

Keyword Search:


< Back to Home

Diagram # Part Number Description Series Find a Video
1 WPW10267642 Drain Hose (internal) Find a Video
2 WP696392 Clamp, Hose   (Replaces:8181734) Find a Video
3 WPW10467168 Hose, Tub To Pump Find a Video
4 W10273036 Clamp, Hose Find a Video
5 WP356138 Clamp, Hose Find a Video
6 WPW10321032 Pump (complete) Find a Video
7 W10338326 Grommet, Damper (rear) Find a Video
8 WPW10526202 Grommet, Damper (front)   (Replaces:8182816) Find a Video
9 WP8181736 Seal, Filter Cap Find a Video
10 W10241027 Filter, Pump Find a Video
11 W10338322 Cap, Filter Find a Video
12 W10441646 Retainer, Drain Hose Find a Video
