01 - Top And Cabinet Parts

Diagram for 02 - Door Parts
02 - Door Parts

Diagram for 03 - Control Panel Parts
03 - Control Panel Parts

Diagram for 04 - Dispenser Parts
04 - Dispenser Parts

Diagram for 05 - Tub And Basket Parts
05 - Tub And Basket Parts

Diagram for 06 - Pump Parts
06 - Pump Parts

Diagram for 07 - Optional Parts (not Included)
07 - Optional Parts (not Included)


New Model Search:



Manufacturer: Maytag

Keyword Search:


< Back to Home

Diagram # Part Number Description Series Find a Video
1 W10387857 Console Asssembly (white) Find a Video
W10387860 Console Asssembly (cosmetallic) Find a Video
W10387862 Console Asssembly (red) Find a Video
2 W10315748 Handle, Dispenser Drawer (also Shown On Dispenser Parts Page) (cosmetallic) Find a Video
W10316371 Handle, Dispenser Drawer (also Shown On Dispenser Parts Page) (red) Find a Video
W10281852 Handle, Dispenser Drawer (also Shown On Dispenser Parts Page) (white) Find a Video
3 W10271989 Harness, Main Ui Find a Video
4 W10427972 Control Unit, Central Find a Video
5 W10309986 Harness, Jumper Find a Video
6 W10309987 Harness, Jumper Find a Video
7 W10208197 Bracket, Console Find a Video
8 WP489464 Screw   (Replaces:W10142290) Find a Video
9 WPW10653575 Channel, Water   (Replaces:W10317570) Find a Video
10 W10317566 Clip, Spring Find a Video
11 WPW10271979 Harness, Wiring (upper Main) Find a Video
12 W10604650 Ui, Center (includes Knob And Inlay)   (Replaces:W10455728) Find a Video
13 W10514146 Kit, Knob And Inlay Find a Video

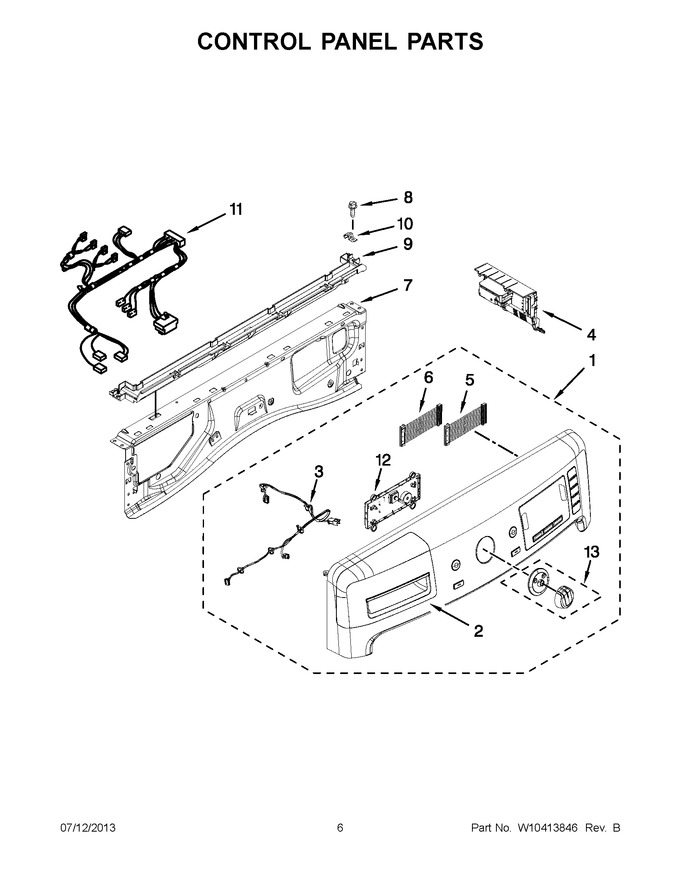

    View Diagram in Separate Window     Print Icon   Print Part List
