Diagram # Part Number Description Series Find a Video
1 WPW10289387 Valve, Water Inlet Find a Video
2 W10538835 Hose, Inlet Valve To Dispenser Find a Video
3 W10096852 Clamp, Hose Find a Video
4 WP8183181 Nozzle, Inlet Find a Video
5 WP8183183 Lever, Connection Find a Video
6 WP8183184 Cam, Actuator   (Replaces:W10003190) Find a Video
7 WPW10183517 Lever, Water Distribution Find a Video
8 WPW10352973 Actuator   (Replaces:W10163975) Find a Video
9 WP8540282 Screw Find a Video
10 WPW10351811 Housing, Dispenser Assembly Find a Video
11 WP8181712 Nozzle, Distribution   (Replaces:W10003110) Find a Video
12 WPW10121596 Separator, With Selection Slider   (Replaces:W10015200) Find a Video
13 W10289432 Siphon, Bleach/softener Find a Video
14 W10003140 Cover, Detergent Drawer Find a Video
15 WPW10256686 Drawer, Detergent (complete) Find a Video
16 W10315748 Handle, Dispenser Drawer (cosmetallic) Find a Video
W10316371 Handle, Dispenser Drawer (red) Find a Video
W10281852 Handle, Dispenser Drawer (white) Find a Video
17 W10239910 Clamp, Hose Find a Video
18 WPW10239966 Hose, Dispenser To Bellow Find a Video

    View Diagram in Separate Window     Print Icon   Print Part List
  Move Mouse over Availability column to View Location Quantities-on-Hand

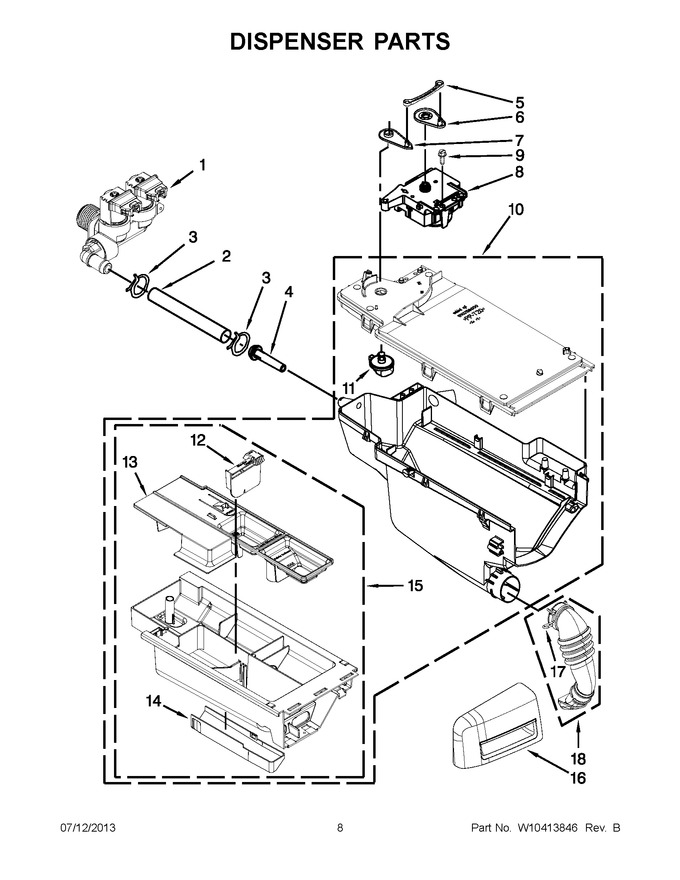

Diagram for MHW6000XW2
