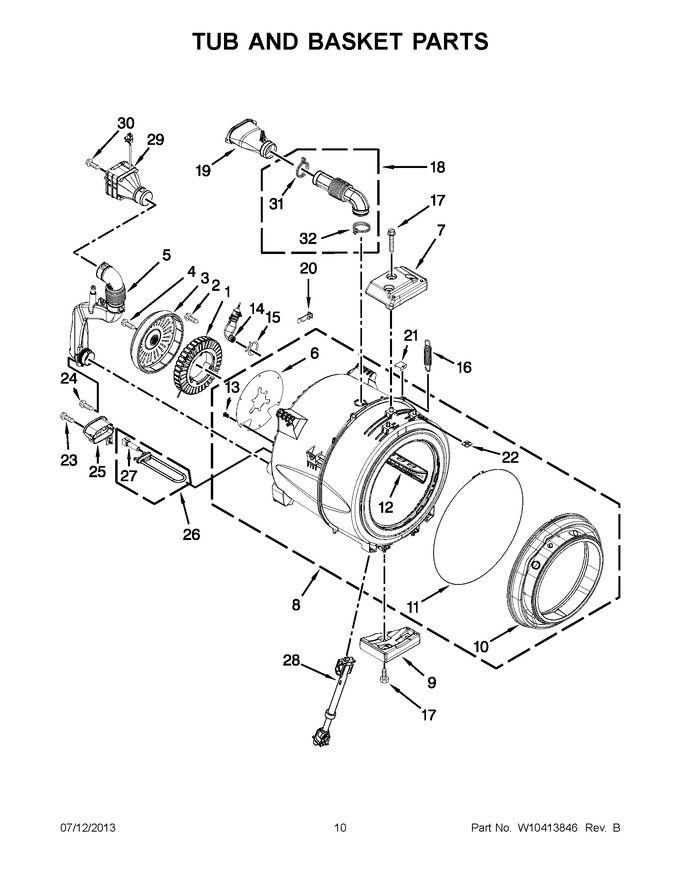

Diagram # Part Number Description Series Find a Video
1 W10365754 Stator, Motor   (Replaces:W10213978) Find a Video
2 WPW10253476 Screw, Stator Mounting Find a Video
3 W10365755 Rotor, Motor   (Replaces:W10213980) Find a Video
4 W11253212 Screw, Rotor Mounting   (Replaces:W10253477) Find a Video
5 W11183219 Pipe, Ventilation Assembly   (Replaces:W10261582) Find a Video
6 W10267637 Shield, Motor Find a Video
7 W10253014 Counterweight, Top Find a Video
8 WPW10409997 Tub Assembly, Drum   (Replaces:W10355161) Find a Video
9 W10237535 Counterweight, Bottom Find a Video
10 W11106747 Bellow   (Replaces:W10474367) Find a Video
11 W11218344 Retainer, Bellow To Tub   (Replaces:W10237502) Find a Video
12 W10697830 Baffle, Tub   (Replaces:W10292810) Find a Video
13 W10273613 Retainer, Push In Find a Video
14 WPW10260500 Airtrap Assembly Find a Video
15 371499 Clamp, Hose Find a Video
16 W11266649 Spring, Suspension (set Of 2)   (Replaces:W10312146) Find a Video
17 W10261496 Screw, Counterweight Find a Video
18 WPW10568614 Vent Hose Coupling Assembly Find a Video
19 WPW10352818 Vent Tube And Cover Find a Video
20 W10316388 Clip, Harness Diverter Find a Video
21 WP8540092 Clamp, Tub Find a Video
22 WP8182512 Nut, Push-in   (Replaces:8540072) Find a Video
23 WP9740848 Screw Find a Video
24 W10306501 Screw Find a Video
25 W10318155 Shield, Heater Find a Video
26 WPW10426377 Heater Find a Video
27 WPW10467289 Sensor, Temp Find a Video
28 W11415987 Shock Absorber   (Replaces:W10312625) Find a Video
29 WPW10434964 Fan, Ventilation Assembly Find a Video
30 WP8540282 Screw Find a Video
31 W10273034 Clamp, Vent Hose Find a Video
32 W10353599 Clamp, Hose Find a Video
