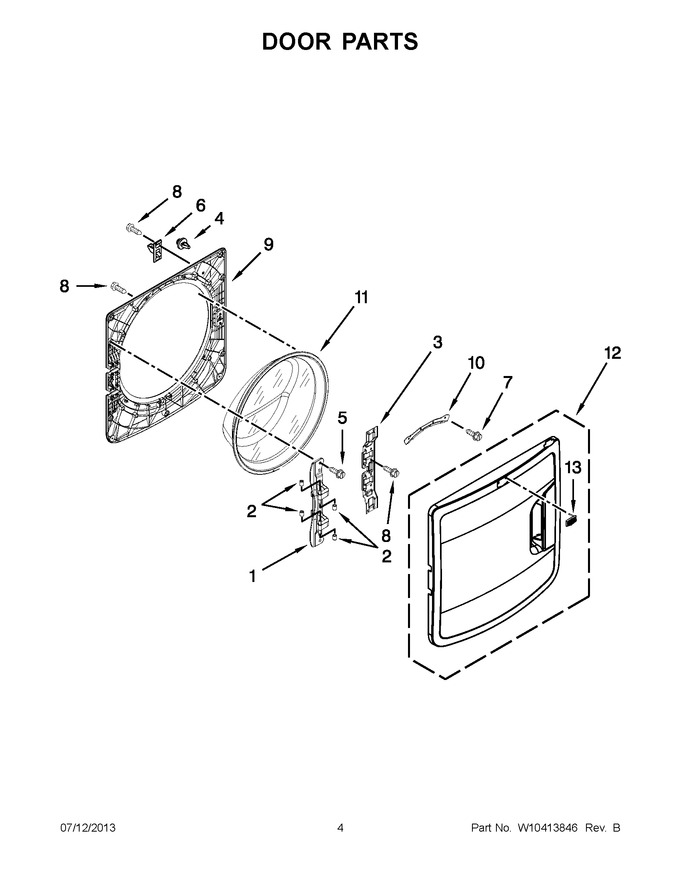

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WPW10208415 | Hinge, Base |  |
|||
| 2 | WPW10208398 | Cap, Hinge | |
|||
| 3 | W10839743 | Plate, Hinge Retainer (Replaces:W10312805) | |
|||
| 4 | 8572266 | Bumper, Door | |
|||
| 5 | WPW10288126 | Screw | |
|||
| 6 | WPW10488048 | Strike, Door | |
|||
| 7 | W11230114 | Screw (Replaces:8540513) | |
|||
| 8 | WP8534022 | Screw | |
|||
| 9 | W11316776 | Frame, Door Back Support (Replaces:W10272396) | |
|||
| 10 | W10295703 | Clamp, Glass (Replaces:W10003440) | |
|||
| 11 | WPW10208263 | Glass, Door | |
|||
| 12 | WPW10272401 | Door, Outer Assembly | |
|||
| 13 | W10732500 | Badge (chrome) (Replaces:W10316087) | |
