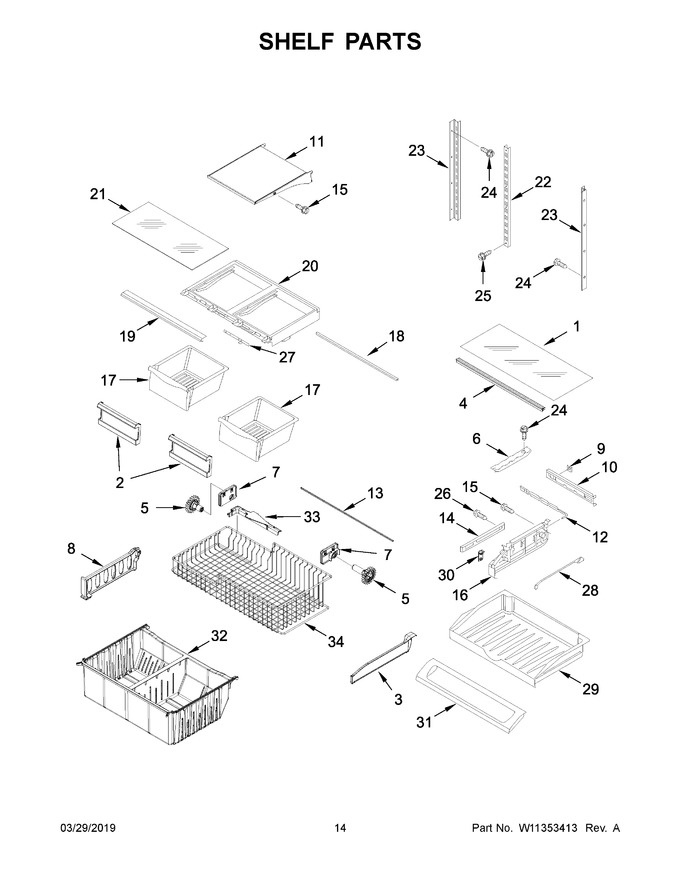

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W11125512 | Glass, Pantry (Replaces:W10893771) |  |
|||
| 2 | WP67005923 | Front, Crisper Pan (Replaces:12802602SP) | |
|||
| 3 | WP67002321 | Divider, Pantry (Replaces:12709301) | |
|||
| 4 | W10528933 | Support, Glass (includes Pantry Brace) | |
|||
| 5 | WPW10474716 | Gear (left Hand) | |
|||
| 6 | WP67001719 | Track, Deli Drawer (Replaces:12531901) | |
|||
| 7 | W10348259 | Mount, Gear (left Hand) | |
|||
| 8 | W10241046 | Divider, Basket (upper) | |
|||
| 9 | 67002329 | Gasket, Pantry (Replaces:12656901) | |
|||
| 10 | 12656202 | Housing, Control | |
|||
| 11 | W11026424 | Assembly, Shelf (Replaces:W10878956) | |
|||
| 12 | WP67003793 | Slide, Temperature Control (Replaces:12655402) | |
|||
| 13 | W11173556 | Shaft, Rack (Replaces:W10802333) | |
|||
| 14 | WPW10235370 | Glide, Pantry | |
|||
| 15 | WP98165 | Screw (Replaces:12990504) | |
|||
| 16 | WP12656105 | Endcap, Pantry (left Hand) | |
|||
| 17 | WP67002659 | Pan, Crisper (Replaces:12531105SP) | |
|||
| 18 | W10832723 | Brace, Crisper Cover | |
|||
| 19 | WPW10231485 | Trim, Crisper (Replaces:W10231485N) | |
|||
| 20 | WP67006185 | Frame, Crisper (Replaces:12531202SP) | |
|||
| 21 | WP67006655 | Glass, Crisper (Replaces:12204821) | |
|||
| 22 | W10273463 | Ladder, Center | |
|||
| 23 | WPW10569182 | Ladder, Side | |
|||
| 24 | 67006425 | Screw (Replaces:12990513) | |
|||
| 25 | W10215666 | Screw | |
|||
| 26 | WP67006415 | Screw (Replaces:12990512) | |
|||
| 27 | WP67005864 | Slide, Humidity Control (Replaces:12530805SP) | |
|||
| 28 | 67003794 | Bar, Temperature Control (Replaces:12655303) | |
|||
| 29 | WP67003530 | Drawer, Pantry (Replaces:12655702) | |
|||
| 30 | W11498983 | Knob, Temperature Control (Replaces:12655204) | |
|||
| 31 | W10827015 | Lid, Pantry (Replaces:12656813) | |
|||
| 32 | W11125514 | Bin, Lower (Replaces:W11028646) | |
|||
| 33 | W10149389 | Lift, Bail Arm (Replaces:W10149389N) | |
|||
| 34 | W11268538 | Basket, Freezer (upper) (Replaces:W11115548) | |
|||
| 16A | WP12656018 | Endcap, Pantry (right Hand) | |
|||
| 5A | WPW10474715 | Gear (right Hand) | |
|||
| 7A | W10348260 | Mount, Gear (right Hand) | |
