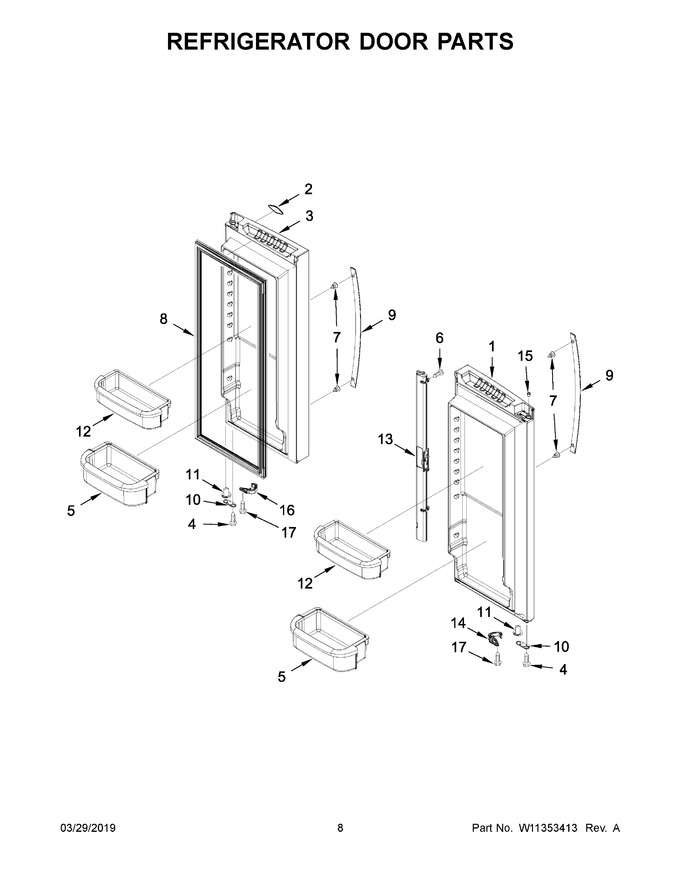

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10919641 | Door, Left (black Stainless) (Replaces:W10879200) |  |
|||
| 2 | W11223753 | Badge (Replaces:W10884773) | |
|||
| 3 | W10919633 | Door, Right (black Stainless) (Replaces:W10879190) | |
|||
| 4 | WP98165 | Screw (Replaces:12990504) | |
|||
| 5 | WPW10371194 | Bucket, Medium | |
|||
| 6 | W11311945 | Screw (Replaces:12990204) | |
|||
| 7 | WPW10661886 | Screw (Replaces:W10460893) | |
|||
| 8 | W11368721 | Gasket, Door (black) (Replaces:W10830206) | |
|||
| 9 | W11125624 | Handle, Door (black Stainless) (Replaces:W11101972) | |
|||
| 10 | WP67007011 | Stop, Door (black) (Replaces:12968202B) | |
|||
| 11 | WP67003639 | Closure, Door (black) (Replaces:12028505B) | |
|||
| 12 | WPW10289497 | Bucket, Gallon | |
|||
| 13 | WP12722803B | Mullion, Door (black) (Replaces:12722803BN) | |
|||
| 14 | W10918170 | Latch, Door Closer Left Hand (black) (Replaces:W10725268) | |
|||
| 15 | 12996601 | Clip, Bushing | |
|||
| 16 | W10918171 | Latch, Door Closer Right Hand (black) (Replaces:W10725267) | |
|||
| 17 | WP489474 | Screw (Replaces:12990519) | |
