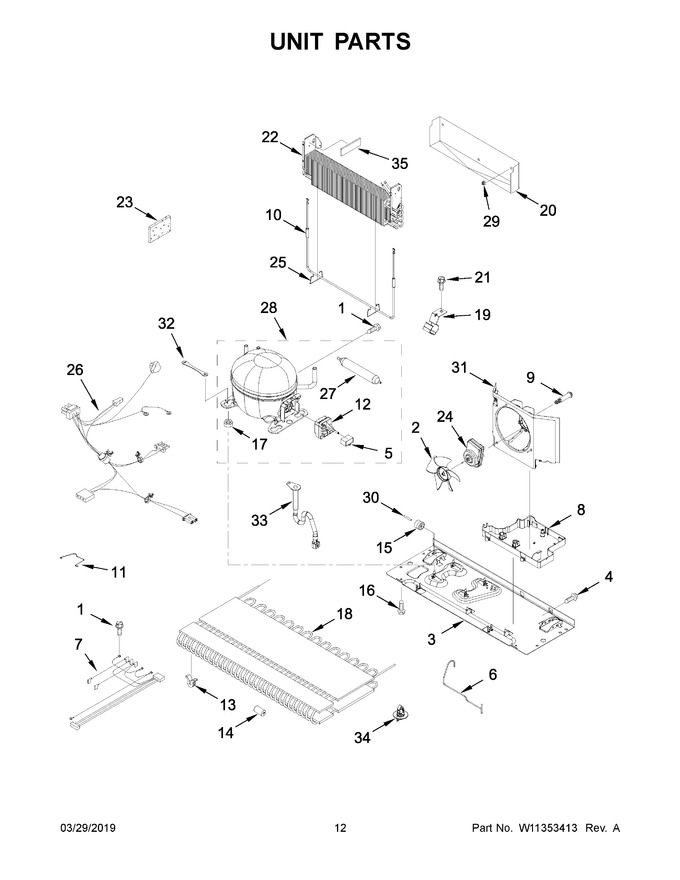

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 12992301 | Screw |  |
|||
| 2 | WP12825803 | Blade, Fan | |
|||
| 3 | W10480111 | Basepan | |
|||
| 4 | 67006425 | Screw (Replaces:12990511) | |
|||
| 5 | WPW10350564 | Capacitor | |
|||
| 6 | WPW10233569 | Tube, Discharge | |
|||
| 7 | W11174745 | Harness, Evaporator Heater | |
|||
| 8 | WPW10655368 | Pan, Drain | |
|||
| 9 | W10829281 | Screw (Replaces:W10622701) | |
|||
| 10 | WP12729123 | Heater, Defrost | |
|||
| 11 | W11092534 | Strap, Bale (Replaces:W10216075) | |
|||
| 12 | W10873801 | Device, Start (Replaces:W10796752) | |
|||
| 13 | WPW10137529 | Grommet, Condenser | |
|||
| 14 | W10852725 | Grommet, Condenser (Replaces:2319835) | |
|||
| 15 | WP67005149 | Roller (Replaces:12477102) | |
|||
| 16 | W10709798 | Screw (Replaces:12992101) | |
|||
| 17 | WPW10169124 | Grommet (Replaces:10835903) | |
|||
| 18 | WPW10346415 | Condenser | |
|||
| 19 | W10281329 | Clip, Drier | |
|||
| 20 | WPW10292803 | Tray, Drip | |
|||
| 21 | WP33001882 | Screw (Replaces:12990701) | |
|||
| 22 | W11256565 | Evaporator (Replaces:W10669255) | |
|||
| 23 | W11553819 | Insulation, Sound Deadening (Replaces:2169104) | |
|||
| 24 | W11613295 | Motor, Condenser Fan (Replaces:W10909377) | |
|||
| 25 | 10428101 | Clip, Heater | |
|||
| 26 | W11224411 | Harness, Unit (includes Power Cord) | |
|||
| 27 | WPW10143759 | Drier (Replaces:W10177049) | |
|||
| 28 | W10233960 | Compressor (Replaces:W10879296) | |
|||
| 29 | 10623002 | Clip, Evaporator | |
|||
| 30 | 67006434 | Axle, Roller (Replaces:12477202) | |
|||
| 31 | W11556315 | Shroud, Condenser Fan (Replaces:W10189184) | |
|||
| 32 | W10236396 | Strap, Compressor | |
|||
| 33 | W10619951 | Extension, Drain Tube (Replaces:W10622099) | |
|||
| 34 | W10815863 | Clip, Condenser | |
|||
| 35 | W11451451 | Gasket, Foam (Replaces:A3189397) | |
|||
| NI | N/P | Refrigerant Charge 5.00 Oz. (r-134a) | |
|||
| 978030 | Valve, Access (3/4") | |
||||
| WP978025 | Valve, Access (1/4") | |
||||
| 978026 | Valve, Access (5/16") | |
||||
| 978027 | Valve, Access (3/8") | |
||||
| 876764 | Valve, Access (3/16") | |
||||
| 978029 | Valve, Access (5/8") | |
