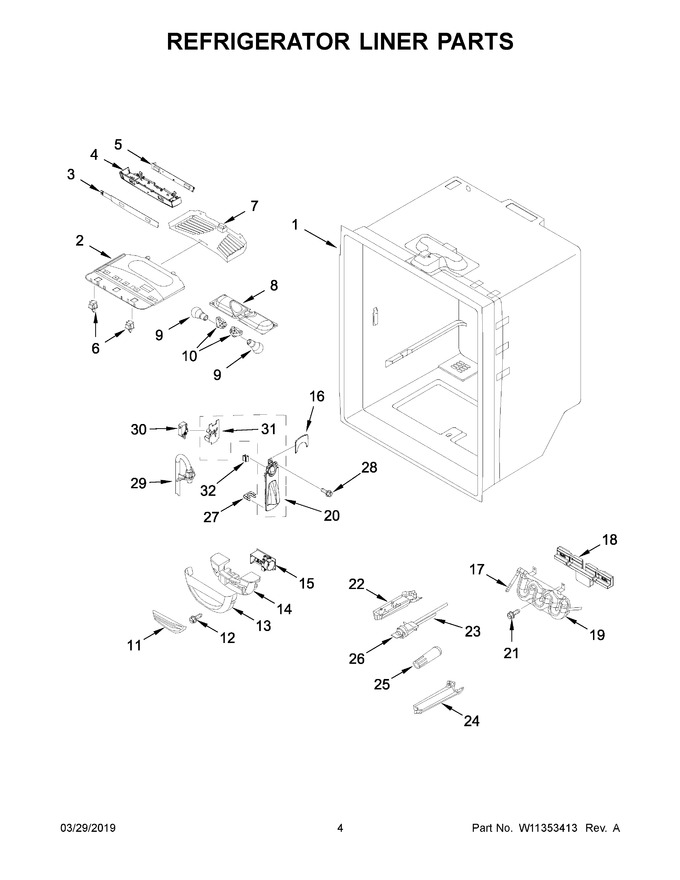

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |  |
|||
| 2 | W10464764 | Module, Light | |
|||
| 3 | W11721626 | Overlay (Replaces:W10632601) | |
|||
| 4 | W11416469 | Module, Control (Replaces:W10464767) | |
|||
| 5 | WPW10677146 | Board, Control | |
|||
| 6 | W11123941 | Switch, Light (Replaces:W10847853) | |
|||
| 7 | W11284721 | Cover, Light (Replaces:W11132917) | |
|||
| 8 | W10443023 | Housing, Light | |
|||
| 9 | W11107911 | Lamp, Led (Replaces:W11038115) | |
|||
| 10 | W11447232 | Socket, Light (Replaces:12570701V) | |
|||
| 11 | 67003900 | Insert, Damper Cover (Replaces:12806801) | |
|||
| 12 | WP400021-1 | Screw (Replaces:12990604) | |
|||
| 13 | WP12806701 | Cover, Damper | |
|||
| 14 | W11750607 | Insulation, Damper (Replaces:13012402) | |
|||
| 15 | WPW10594329 | Control, Damper | |
|||
| 16 | 67005674 | Facade, Dispenser (top) (Replaces:12707005) | |
|||
| 17 | WP2300868 | Union, Water (Replaces:61006182) | |
|||
| 18 | WPW10163893 | Insulation, Tank | |
|||
| 19 | W11229977 | Tank, Water (Replaces:W11097710) | |
|||
| 20 | WPW10585703 | Facade, Dispenser | |
|||
| 21 | WP67006415 | Screw (Replaces:12990512) | |
|||
| 22 | WP67001668 | Plate, Filter (Replaces:12704801) | |
|||
| 23 | W11346623 | Head, Water Filter (includes Bypass Cartridge) (Replaces:W11308018) | |
|||
| 24 | WP12568001 | Cover, Filter | |
|||
| 25 | EDR4RXD1 | Filter, Water (Replaces:W11256384) | |
|||
| 26 | W11395888 | Cartridge, Bypass (Replaces:12664501SP) | |
|||
| 27 | W10819546 | Clip, Facade (Replaces:B8390302) | |
|||
| 28 | 67006425 | Screw (Replaces:12990513) | |
|||
| 29 | W11677725 | Guide, Waterline (Replaces:W11031909) | |
|||
| 30 | WP12575501 | Switch, Limit | |
|||
| 31 | WPW10585699 | Plate, Dispenser | |
|||
| 32 | 67002816 | Clip, Water Tube (Replaces:12251001) | |
|||
| NI | WPW10224292 | Harness, Controls (refrigerator) | |
|||
| N/P | Following Parts Not Illustrated | |
