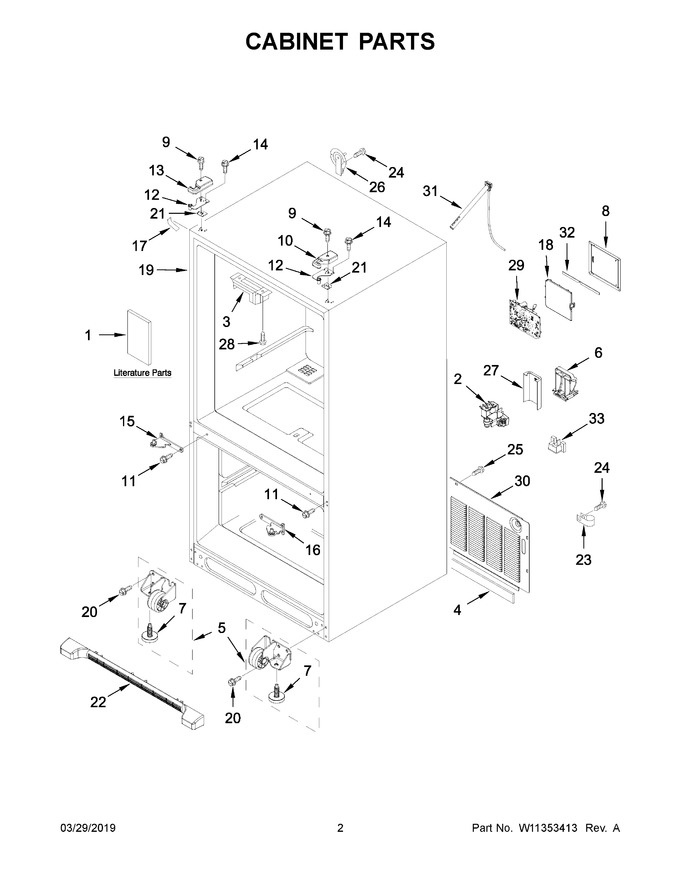

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W11339698 | Use And Care Guide |  |
|||
| 2 | WPW10420083 | Valve, Water Inlet | |
|||
| 3 | WP67003405 | Plate, Pivot (Replaces:12698403) | |
|||
| 4 | B5759655 | Gasket | |
|||
| 5 | WPW10515763 | Assembly, Roller (left Hand) | |
|||
| 6 | W10528513 | Sweep, Dual Tube | |
|||
| 7 | WPW10141622 | Brake, Roller | |
|||
| 8 | 12961602 | Cover, Control Box | |
|||
| 9 | WP8281196 | Screw (Replaces:12992602) | |
|||
| 10 | WP67005956 | Cover, Right Hinge (black) (Replaces:12962302B) | |
|||
| 11 | WP67006380 | Screw (stainless) (Replaces:W10673840) | |
|||
| 12 | WP12963204ED | Hinge, Top (left Hand) | |
|||
| 13 | W10337647 | Cover, Left Hinge (black) | |
|||
| 14 | WP489349 | Screw (Replaces:12992403) | |
|||
| 15 | W10918166 | Hinge, Center Left Hand (black) (Replaces:W10740149) | |
|||
| 16 | W10918168 | Hinge, Center Right Hand (black) (Replaces:W10740145) | |
|||
| 17 | 67003485 | Cover, Corner (black) (Replaces:12587703B) | |
|||
| 18 | W11226688 | Lid, Hv Box (Replaces:12957702SP) | |
|||
| 19 | N/P | Cabinet (not A Serviceable Part) | |
|||
| 20 | 67006564 | Screw (Replaces:W10709365) | |
|||
| 21 | 12999501 | Shim, Top Hinge (left Hand) | |
|||
| 22 | WPW10534153 | Assembly, Grille (includes Clips) (black) | |
|||
| 23 | W11456069 | Clamp, Tube (Replaces:M0108107) | |
|||
| 24 | WP98165 | Screw (Replaces:12990504) | |
|||
| 25 | 67006425 | Screw (Replaces:12990511) | |
|||
| 26 | 12726003 | Cover, Water Line | |
|||
| 27 | W10208593 | Guard, Dual Water Valve | |
|||
| 28 | W11693756 | Screw (Replaces:688983) | |
|||
| 29 | WPW10317076 | Board, Hv Control | |
|||
| 30 | WPW10211855 | Cover, Unit | |
|||
| 31 | W11181718 | Assembly, Fill Tube (includes Tubing, Fill Tube Elbow, Tube Insert And Clamp) (Replaces:W11046934) | |
|||
| 32 | 67006429 | Gasket, Control Box (Replaces:12957801) | |
|||
| 33 | W10658542 | Block, Fill Tube | |
|||
| 12A | W11592374 | Hinge, Top (right Hand) (Replaces:12963205ED) | |
|||
| 1A | W10787424 | Tech Sheet (english) | |
|||
| 1B | W10787423 | Tech Sheet (french) | |
|||
| 1C | W11308955 | Tech Sheet, Energy Guide | |
|||
| 21A | 12999502 | Shim, Top Hinge (right Hand) | |
|||
| 5A | WPW10515762 | Assembly, Roller (right Hand) | |
