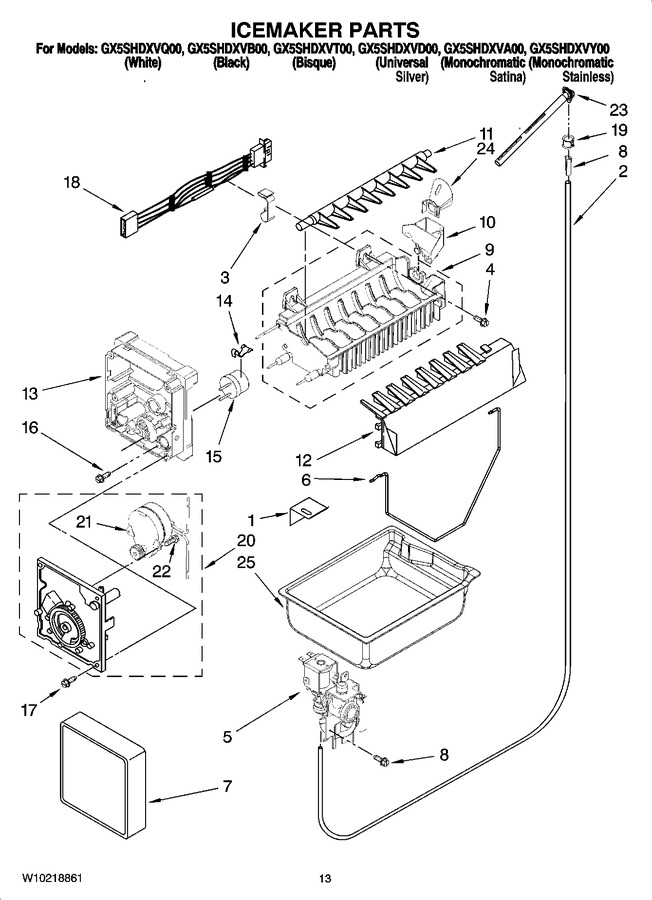

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | WP2256087 | Bracket, Ice Maker (Replaces:2256086) | ||||
2 | WPB5705307 | Tube, Plastic (Replaces:67003729) | ||||
3 | 67003932 | Clamp | ||||
4 | WP681249 | Screw (Replaces:489276) | ||||
5 | WP67003753 | Valve, Inlet | ||||
6 | WP67004028 | Arm, Shutoff | ||||
7 | WPW10289690 | Cover, Front (Replaces:12582501) | ||||
8 | WPA3223101 | Insert, Tube | ||||
9 | WPW10190929 | Mold & Heater Assembly (alsoorder 542638) (Replaces:W10122527) | ||||
10 | W10122561 | Cup, Water Fill (Replaces:628515) | ||||
11 | WP627843 | Ejector | ||||
12 | WP2182124 | Ice Stripper | ||||
13 | WP2195914 | Support (Replaces:2194712) | ||||
14 | WP2315522 | Retainer | ||||
15 | WP627985 | Thermostat (order 542369 Cement Alumilastic) | ||||
16 | 8533917 | Screw | ||||
17 | WP489464 | Screw | ||||
18 | WPD7813010 | Harness, Icemaker (Replaces:W10146389) | ||||
19 | WPM0114003 | Clip, Speed | ||||
20 | 8201515 | Module Assembly (includes Items 21 & 22) (Replaces:626678) | ||||
21 | W10190935 | Motor (Replaces:626684) | ||||
22 | 489136 | Screw | ||||
23 | W11176463 | Elbow, Fill Tube (Replaces:W10137519) | ||||
24 | 12918001 | Funnel, Fill Tube (Replaces:67005603) | ||||
25 | WPW10171529 | Pan-ice | ||||
100 | D7824706Q | Complete Ice Maker |
