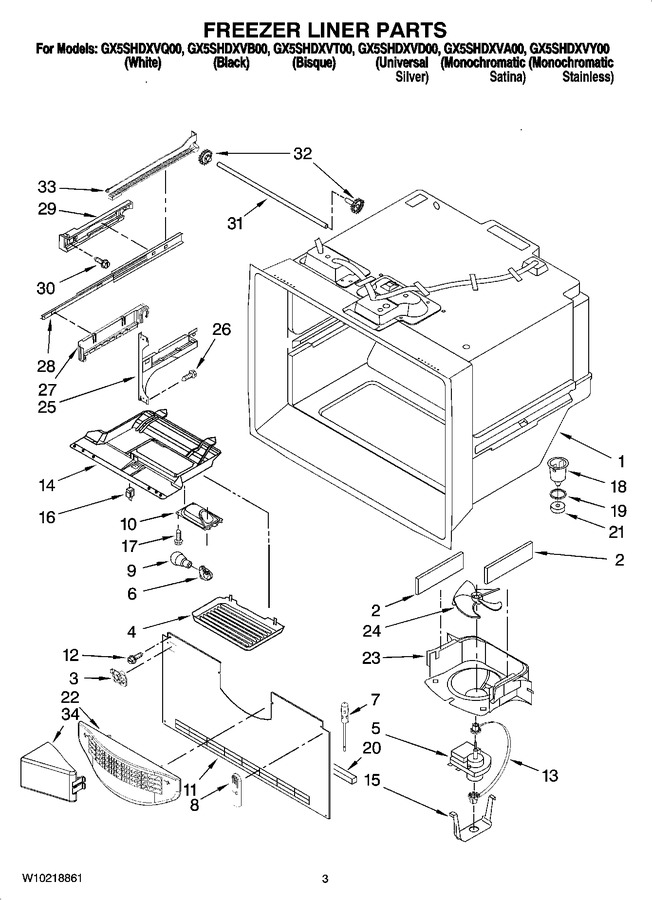

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 2 | W10856123 | Gasket, Foam (Replaces:67001291) |  |
|||
| 3 | 67005874 | Guide, Fill Tube | |
|||
| 4 | 67003905 | Cover, Light | |
|||
| 5 | WPW10128551 | Motor, Evaporator | |
|||
| 6 | W11447232 | Socket, Light (Replaces:Y12570701) | |
|||
| 7 | 12002355 | Thermistor | |
|||
| 8 | WP67003924 | Cover, Thermistor | |
|||
| 9 | 8009 | Bulb, Light (Replaces:A0282812) | |
|||
| 10 | 67001035 | Housing, Light | |
|||
| 11 | W10308416 | Cover, Evaporator (Replaces:67005873) | |
|||
| 12 | 67006425 | Screw | |
|||
| 13 | W10121318 | Grommet | |
|||
| 14 | 67003906 | Module, Light | |
|||
| 15 | 13058002 | Clip, Evap. Motor (Replaces:W10208652) | |
|||
| 16 | W11396033 | Switch, Light (Replaces:67005653) | |
|||
| 17 | W10709797 | Screw (Replaces:67006530) | |
|||
| 18 | W10815413 | Funnel, Drain (Replaces:D7753903) | |
|||
| 19 | WPM0500703 | Seal | |
|||
| 20 | W11159728 | Gasket, Bottom (Replaces:67002492) | |
|||
| 21 | WPB8381501 | Gasket | |
|||
| 22 | WPW10175909 | Grille, Fz Air | |
|||
| 23 | WPW10167023 | Shroud, Evap.fan | |
|||
| 24 | WP2169142 | Blade, Fan (evaporator) | |
|||
| 25 | WPW10330991 | Bracket, Door (left) (Replaces:W10122147) | |
|||
| WPW10330993 | Bracket, Door (right) (Replaces:W10122148) | |
||||
| 26 | WP98165 | Screw (8) (Replaces:67006473) | |
|||
| 27 | WPW10280608 | Cradle, Basket (left) (Replaces:W10187668) | |
|||
| WPW10280613 | Cradle, Basket (right) (Replaces:W10187667) | |
||||
| 28 | W11658402 | Slide, Drawer (2) (Replaces:W10120018) | |
|||
| 29 | WPW10284684 | Adapter, Slide (left) (Replaces:W10149390) | |
|||
| WPW10284685 | Adapter, Slide (right) (Replaces:W10149391) | |
||||
| 30 | WP489474 | Screw (6) (Replaces:67006406) | |
|||
| 31 | W11028221 | Shaft (Replaces:67004017) | |
|||
| 32 | 12002497 | Gears (lh) (Replaces:67004430) | |
|||
| 67006407 | Gears (rh) | |
||||
| 33 | W11489993 | Rail, Side (left) (Replaces:W10146443) | |
|||
| W11489994 | Rail, Side (right) (Replaces:W10146444) | |
||||
| 34 | W10157765 | Diverter-air | |
|||
| 67006095 | Harness, Lights (freezer) | |
