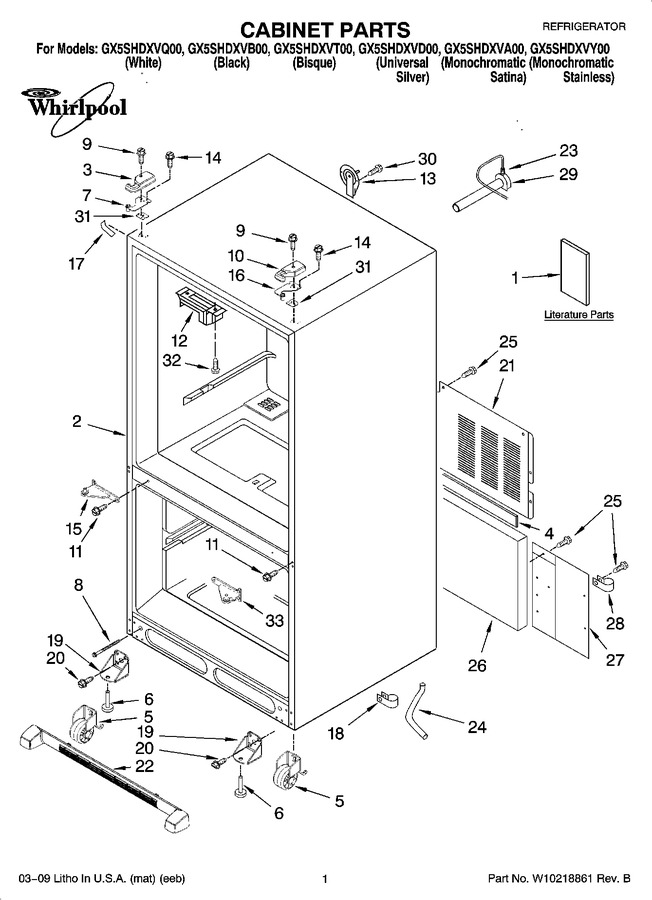

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10187811 | Energy Guide |  |
|||
| W10200283 | Use & Care Guide | |
||||
| 12827967 | Tech Sheet | |
||||
| 3 | 67005951 | Cover, Left Hinge (black) | |
|||
| WPW10337634 | Cover, Left Hinge (white) (Replaces:67005953) | |
||||
| WPW10337648 | Cover, Left Hinge (apollo Grey) (Replaces:W10191116) | |
||||
| 67005952 | Cover, Left Hinge (bisque) | |
||||
| 4 | B5759649 | Gasket | |
|||
| 5 | WP12580304 | Roller Assy. (2) (Replaces:67006118) | |
|||
| 6 | W11177593 | Foot Brake (Replaces:67003868) | |
|||
| 7 | WP12963204ED | Hinge, Left Top | |
|||
| 8 | 67006611 | Bolt, Adjusting (front Roller) | |
|||
| 9 | WP8281196 | Screw (Replaces:67006521) | |
|||
| 10 | 67005958 | Cover, Right Hinge (white) | |
|||
| WP67005956 | Cover, Right Hinge (black) | |
||||
| WPW10191117 | Cover, Right Hinge (apollo Grey) | |
||||
| 67005957 | Cover, Right Hinge (bisque) | |
||||
| 11 | 67005822 | Screw | |
|||
| 12 | WP67003405 | Block, Pivot | |
|||
| 13 | 12726003 | Cover, Water Line (Replaces:67003331) | |
|||
| 14 | WP489349 | Screw (3) (Replaces:67006303) | |
|||
| 15 | 67006442 | Hinge, Center (lt) (black) | |
|||
| W10917988 | Hinge, Center (lt) (apollo Grey) (Replaces:W10191142) | |
||||
| W10918113 | Hinge, Center (lt) (white) (Replaces:67006277) | |
||||
| 16 | W11592374 | Hinge, Right Top (Replaces:12963205ED) | |
|||
| 17 | 67003484 | Cover, Corner (white) | |
|||
| 67003485 | Cover, Corner (black) | |
||||
| 12587703C | Cover, Corner (bisque) (Replaces:67003486) | |
||||
| WP12587703AP | Cover, Corner (apollo Grey) (Replaces:W10191102) | |
||||
| 18 | W10157973 | Clip, Drain | |
|||
| 19 | 12906303WD | Bracket, Foot (2) (Replaces:W10208641) | |
|||
| 20 | 67006564 | Screw (4) | |
|||
| 21 | 12575101WD | Cover, Unit (Replaces:12575101ED) | |
|||
| 22 | WPW10534152 | Grille, Toe (bisque) (Replaces:67006376) | |
|||
| WPW10534155 | Grille, Toe (apollo Grey) (Replaces:W10191107) | |
||||
| WPW10534153 | Grille, Toe (black) (Replaces:67006375) | |
||||
| WPW10534154 | Grille, Toe (white) (Replaces:67006377) | |
||||
| 23 | WPM0114003 | Clip, Speed | |
|||
| 24 | W10164397 | Tube, Drain | |
|||
| 25 | 67006425 | Screw | |
|||
| 26 | 67003796 | Fiber, Acoustic | |
|||
| 27 | 12479803 | Cover, Water Valve | |
|||
| 28 | W10833902 | Clamp, Tube (Replaces:M0108105) | |
|||
| 29 | W11176463 | Elbow, Fill Tube (Replaces:W10137519) | |
|||
| 30 | WP98165 | Screw (Replaces:67006287) | |
|||
| 31 | 12999502 | Shim, Top Hinge (right) (Replaces:67006309) | |
|||
| 12999501 | Shim, Top Hinge (left) (Replaces:67006308) | |
||||
| 32 | 67006669 | Screw, Block | |
|||
| 33 | W10917988 | Hinge, Center (rt) (apollo Grey) (Replaces:W10191143) | |
|||
| 67006379 | Hinge, Center (rt) (white) | |
||||
| W10918164 | Hinge, Center (rt) (black) (Replaces:67006443) | |
