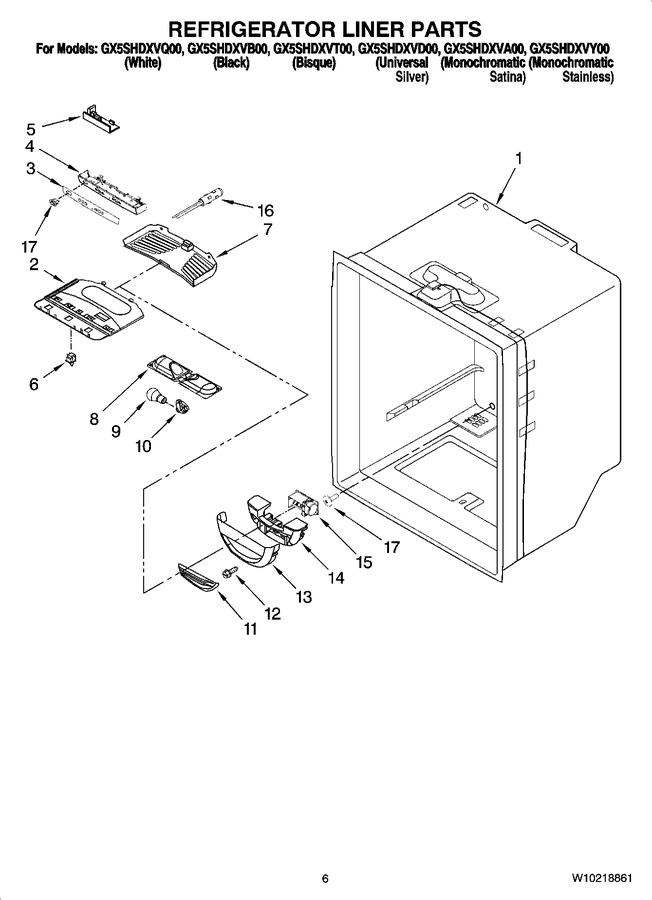

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
2 | 67004078 | Module, Light | ||||
3 | WPW10180451 | Overlay | ||||
4 | WP12806407 | Module, Control (Replaces:W10190014) | ||||
5 | WPW10503278 | Board, Control (Replaces:W10165748) | ||||
6 | W11384469 | Switch, Light (2) (Replaces:C3680310) | ||||
7 | W11284721 | Cover, Light (Replaces:67003897) | ||||
8 | 12806601 | Housing, Light (Replaces:67003901) | ||||
9 | 8009 | Bulb, Light (2) (Replaces:A0282812) | ||||
10 | W11447232 | Socket, Light (2) (Replaces:Y12570701) | ||||
11 | 67003900 | Insert, Damper Cover | ||||
12 | WP400021-1 | Screw (Replaces:67006602) | ||||
13 | WP12806701 | Cover, Damper (Replaces:67003899) | ||||
14 | WP13012402 | Insulation (Replaces:67006604) | ||||
15 | WPW10196393 | Control, Damper (includes Harness) (Replaces:W10127429) | ||||
16 | 12002355 | Thermistor | ||||
17 | W11478401 | Switch (energy Saver) (Replaces:67003940) | ||||
WP12868601 | Harness, Controls (refrigerator) (Replaces:67004032) |
