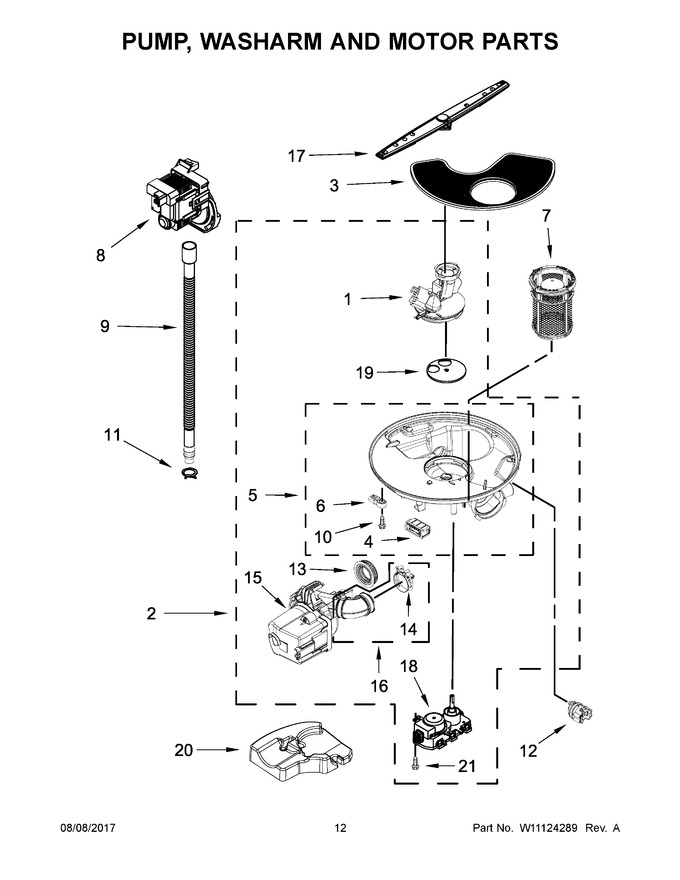

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WPW10455271 | Cover, Outlet |  |
|||
| 2 | W11665769 | Sump & Motor Assembly (also Order Items 13 & 16) (Replaces:W10917110) | |
|||
| 3 | WPW10463906 | Screen | |
|||
| 4 | W11243394 | Motor, Isolator (Replaces:W10195086) | |
|||
| 5 | WPW10455268 | Sump With Seal | |
|||
| 6 | WPW10372113 | Tab, Sump | |
|||
| 7 | W10872845 | Filter Cup Assembly (Replaces:W10789806) | |
|||
| 8 | W10876537 | Pump, Drain (Replaces:W10724439) | |
|||
| 9 | 8269144A | Hose, Drain (Replaces:8269144) | |
|||
| 10 | WPW10348407 | Screw | |
|||
| 11 | WP285655 | Clamp, Hose (Replaces:370445) | |
|||
| 12 | W11084121 | Indicator, Optical Wash (Replaces:W10723295) | |
|||
| 13 | WPW10538166 | Grommet | |
|||
| 14 | W10789434 | Clamp, Hose (Replaces:W10169167) | |
|||
| 15 | W11084656 | Motor (also Order Items 13 & 16) (Replaces:W10854710) | |
|||
| 16 | W10445975 | Hose Assembly (includes 2 Clamps) | |
|||
| 17 | WPW10491331 | Sprayarm | |
|||
| 18 | W10537869 | Motor, Diverter (Replaces:W10849439) | |
|||
| 19 | WPW10476221 | Disc, Diverter | |
|||
| 20 | W10350335 | Damper, Sump Assembly (Replaces:W10300776) | |
|||
| 21 | WP9741232 | Screw | |
