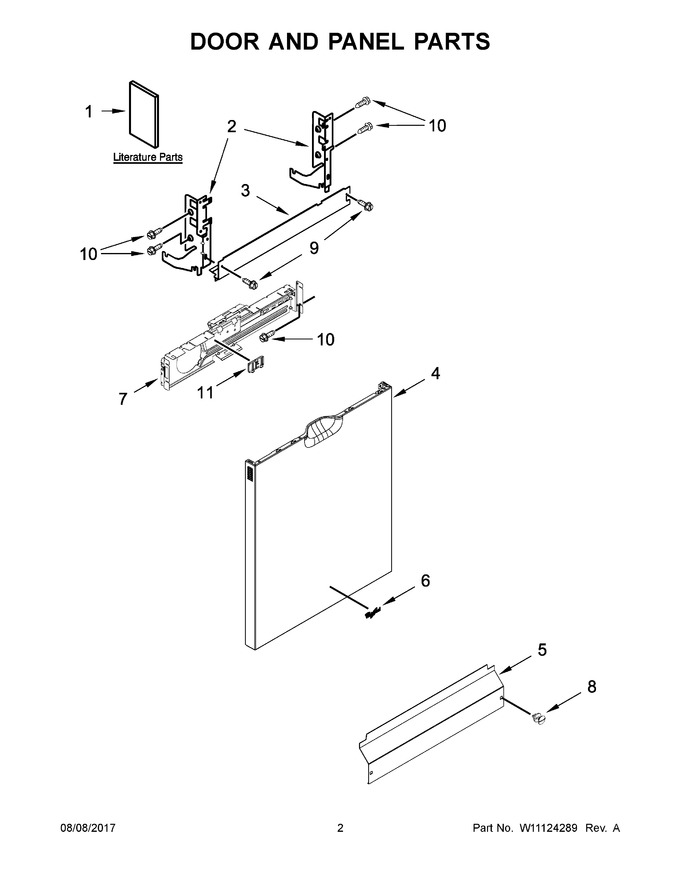

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10806906 | Installation Instructions |  |
|||
| 2 | W11612302 | Arm, Hinge (left Hand) (Replaces:8534854) | |
|||
| 3 | W10850371 | Barrier, Vapor (Replaces:W10844384) | |
|||
| 4 | W10810488 | Panel, Front (includes Nameplate) (black) (Replaces:W10698612) | |
|||
| 5 | WPW10441006 | Access Panel (black) | |
|||
| 6 | WPW10393264 | Nameplate (grey) | |
|||
| 7 | W11116870 | Bracket, Control (Replaces:W10641745) | |
|||
| 8 | WPW10503548 | Fastener (black) | |
|||
| 9 | WP489069 | Screw (Replaces:304392) | |
|||
| 10 | WP3400071 | Screw | |
|||
| 11 | W10463662 | Spacer, Control Bracket Panel | |
|||
| 1A | W10921054 | Energy Guide | |
|||
| 1B | W10852540 | Use & Care Guide | |
|||
| 1C | W10904612 | Tech Sheet | |
|||
| 2A | W11612303 | Arm, Hinge (right Hand) (Replaces:8534853) | |
|||
| 4A | W10849693 | Panel, Front (includes Nameplate) (white) (Replaces:W10698613) | |
|||
| 4B | W10839934 | Panel, Front (includes Nameplate) (biscuit/bisque) (Replaces:W10698614) | |
|||
| 4C | WPW10698615 | Panel, Front (includes Nameplate) (stainless) | |
|||
| 5A | WPW10441007 | Access Panel (white) | |
|||
| 5B | W10441008 | Access Panel (biscuit/bisque) | |
|||
| 6A | W11178521 | Nameplate (white) (Replaces:W10387117) | |
|||
| 8A | WPW10503549 | Fastener (white) | |
|||
| 8B | WPW10503550 | Fastener (biscuit/bisque) | |
