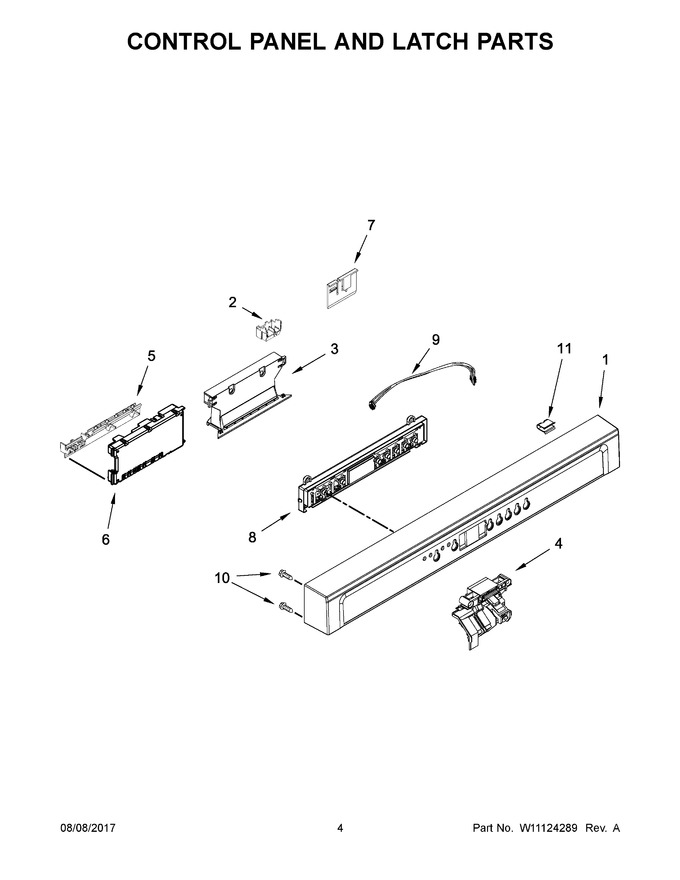

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10874369 | Console Assembly (includes Insert) (black) (Replaces:W11086163) |  |
|||
| 2 | W10874358 | Box, Connector (Replaces:W10825638) | |
|||
| 3 | W11568629 | Handle Pocket (black) (Replaces:W10629511) | |
|||
| 4 | WPW10653840 | Latch Assembly (includes Switch) | |
|||
| 5 | W10874357 | Brace, Connector (Replaces:W10825369) | |
|||
| 6 | W11306302 | Control, Electronic (Replaces:W11130314) | |
|||
| 7 | WPW10195237 | Clip, Control | |
|||
| 8 | W10918489 | Housing Assembly, User Interface | |
|||
| 9 | W11028004 | Jumper, 4-wire (Replaces:W10566903) | |
|||
| 10 | WPW10348408 | Screw | |
|||
| 11 | W10815836 | Clip, Panel (Replaces:W10485367) | |
|||
| 1A | W10874370 | Console Assembly (includes Insert) (white) (Replaces:W11086164) | |
|||
| 1B | W11108140 | Console Assembly (includes Insert) (biscuit/bisque) (Replaces:W11086166) | |
|||
| 1C | W10874377 | Console Assembly (includes Insert) (stainless) (Replaces:W11086165) | |
