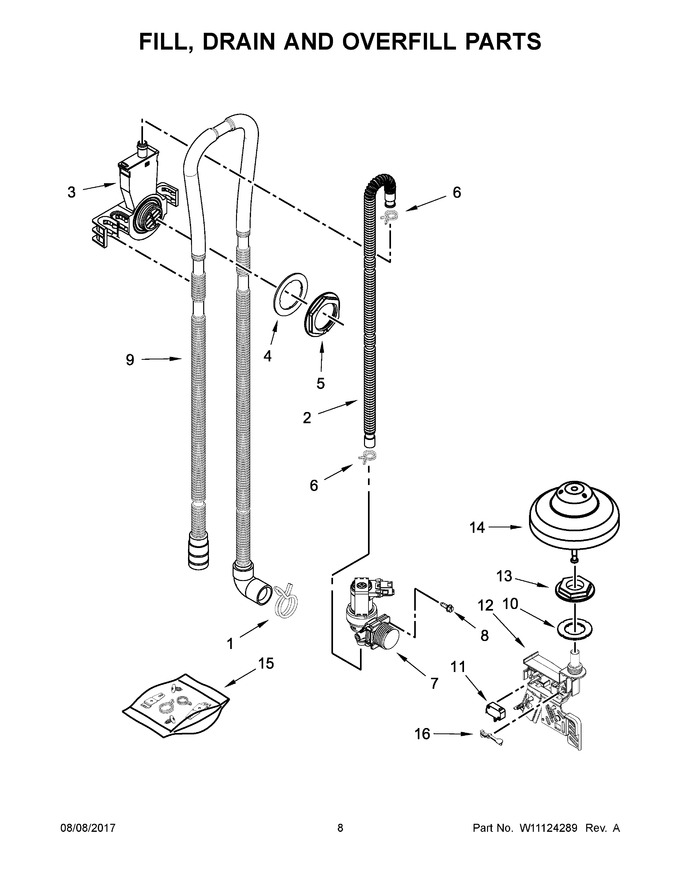

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WP285655 | Clamp, Hose (Replaces:370445) |  |
|||
| 2 | W10878507 | Hose (Replaces:W10769066) | |
|||
| 3 | WPW10195536 | Inlet, Water (also Order Item 4) | |
|||
| 4 | WP8531323 | Gasket | |
|||
| 5 | WPW10213825 | Nut, Water Inlet (also Order Item 4) | |
|||
| 6 | 371505 | Clamp, Hose | |
|||
| 7 | WPW10327249 | Fill Valve Assembly | |
|||
| 8 | WP489069 | Screw (Replaces:304392) | |
|||
| 9 | WPW10545278 | Drain Loop With Check Valve Asembly | |
|||
| 10 | WP8531743 | Gasket, Flat | |
|||
| 11 | WPW10195039 | Switch, Overfill Control (Replaces:W10734532) | |
|||
| 12 | W10873429 | Housing, Overfill (Replaces:W10647205) | |
|||
| 13 | WPW10195038 | Nut, Standpipe | |
|||
| 14 | WPW10195036 | Float & Retainer Assembly | |
|||
| 15 | WPW10292152 | Miscellaneous Parts Bag (contains 2 Screws, 2 Clamps, & 2 Brackets) | |
|||
| 16 | WPW10195037 | Lever, Overfill Switch | |
