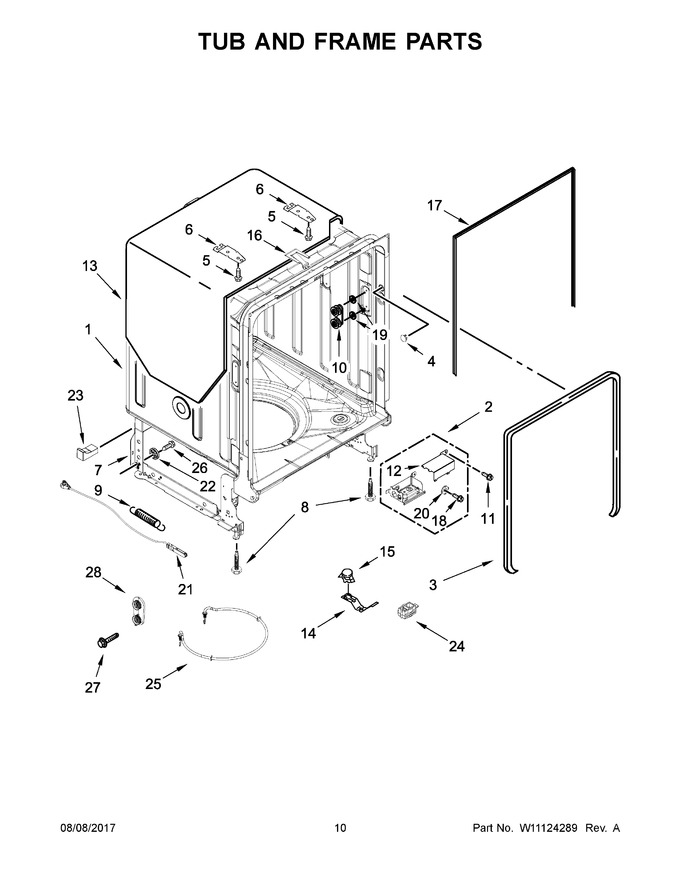

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WPW10681507 | Tub Assembly (includes Heater Assembly) (Replaces:W10681492) |  |
|||
| 2 | W11167239 | Assembly, Terminal Box (Replaces:W10713315) | |
|||
| 3 | W11177741 | Gasket, Tub (Replaces:W10660528) | |
|||
| 4 | W10795980 | Plug, Tub (Replaces:W10813122) | |
|||
| 5 | WP308685 | Screw (Replaces:3367670) | |
|||
| 6 | WP8269145 | Bracket, Undercounter | |
|||
| 7 | WPW10681564 | Support Assembly, Rear | |
|||
| 8 | 8193716 | Leveler, Leg (Replaces:W10619352) | |
|||
| 9 | WP8270020 | Spring, Door Balance | |
|||
| 10 | WPW10078083 | Wheel And Mount Assembly | |
|||
| 11 | WP3400892 | Screw | |
|||
| 12 | W10847918 | Cover, Terminal Box (Replaces:W10653292) | |
|||
| 13 | W11086533 | Shield, Tub Sound (Replaces:W10866978) | |
|||
| 14 | W10300703 | Bracket, Thermostat | |
|||
| 15 | WPW10195091 | Thermostat | |
|||
| 16 | WPW10544004 | Strike, Latch | |
|||
| 17 | W10864081 | Seal, Cabinet (Replaces:W10835073) | |
|||
| 18 | WP3400014 | Screw, Grounding | |
|||
| 19 | WP9743002 | Gasket, Mounting Bracket | |
|||
| 20 | WP3378128 | Washer, Pronged Cup | |
|||
| 21 | 8194001 | Cable, Door (Replaces:W10158291) | |
|||
| 22 | WPW10190778 | Wheel Leg | |
|||
| 23 | W10195630 | Spacer, Tub/brace (left Hand) | |
|||
| 24 | W10292870 | Shield, Thermostat | |
|||
| 25 | W10703867 | Heater Element Assembly (includes Heater Washer & Nut) (Replaces:W10696509) | |
|||
| 26 | WPW10348411 | Screw | |
|||
| 27 | WP3400074 | Screw | |
|||
| 28 | WPW10084086 | Door Balance Assembly | |
|||
| 23A | W10195631 | Spacer, Tub/brace (right Hand) | |
