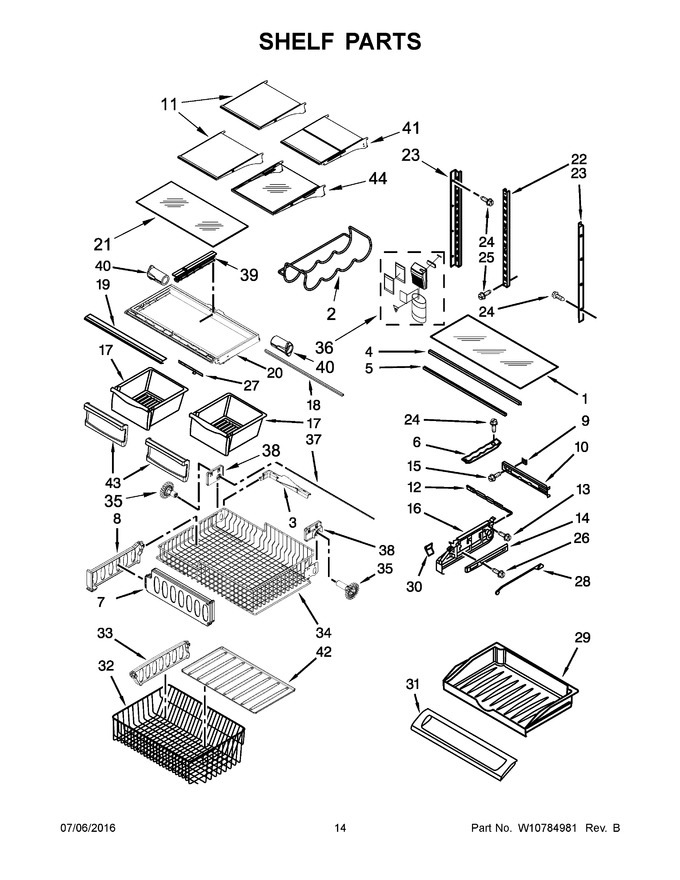

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W11033333 | Glass, Shelf (Replaces:12204830) |  |
|||
| 2 | W11214481 | Rack, Wine (Replaces:W10742811) | |
|||
| 3 | W10149389 | Lift, Bail Arm (Replaces:W10149389N) | |
|||
| 4 | W11210956 | Trim, Pantry Glass (Replaces:W10528935) | |
|||
| 5 | WP12227305WD | Brace, Pantry (Replaces:12227305WH) | |
|||
| 6 | WP67001719 | Track, Deli Drawer (Replaces:12531901) | |
|||
| 7 | W10171558 | Divider, Basket (upper) | |
|||
| 8 | W10241046 | Divider, Basket (upper) | |
|||
| 9 | 67002329 | Gasket, Pantry (Replaces:12656901) | |
|||
| 10 | 12656202 | Housing, Control | |
|||
| 11 | WPW10739590 | Assembly, Fixed Shelf | |
|||
| 12 | WP67003793 | Slide, Temperature Control (Replaces:12655402) | |
|||
| 13 | WP67006415 | Screw (Replaces:12990512) | |
|||
| 14 | WPW10235370 | Glide, Pantry | |
|||
| 15 | 67006425 | Screw (Replaces:12990513) | |
|||
| 16 | W10874836 | Endcap, Pantry (left Hand) (Replaces:W10845509) | |
|||
| 17 | WP67004515 | Pan, Crisper (Replaces:12804601SP) | |
|||
| 18 | WP12642303WD | Brace, Crisper Cover | |
|||
| 19 | WPW10231345 | Trim, Crisper (Replaces:W10231345N) | |
|||
| 20 | WPW10329866 | Frame, Crisper | |
|||
| 21 | WP67006704 | Glass, Shelf (Replaces:12204824N) | |
|||
| 22 | W10273463 | Ladder, Center | |
|||
| 23 | WPW10569182 | Ladder, Side | |
|||
| 24 | 67006425 | Screw (Replaces:12990513) | |
|||
| 25 | W10215666 | Screw | |
|||
| 26 | WP98165 | Screw (Replaces:12990504) | |
|||
| 27 | WP67005864 | Slide, Humidity Control (Replaces:12530805SP) | |
|||
| 28 | WP67003795 | Bar, Control (Replaces:12655304) | |
|||
| 29 | WP67003531 | Drawer, Pantry (Replaces:12731302) | |
|||
| 30 | W11498983 | Knob, Temperature Control (Replaces:12655204) | |
|||
| 31 | W10827015 | Lid, Pantry (Replaces:12656813) | |
|||
| 32 | WPW10503184 | Basket, Freezer (lower) (Replaces:W10503184N) | |
|||
| 33 | W10847995 | Divider, Basket (lower) (Replaces:W10146440) | |
|||
| 34 | WPW10348246 | Basket, Freezer (upper) | |
|||
| 35 | WPW10474716 | Gear, Spur (left Hand) | |
|||
| 36 | P1KL6S1 | Assembly, Produce Preserver (Replaces:W10596756) | |
|||
| 37 | W11173556 | Shaft, Rack (Replaces:W10802333) | |
|||
| 38 | W10348259 | Mount, Gear (left Hand) | |
|||
| 39 | WPW10326469 | Rail, Center Crisper (Replaces:W10326469N) | |
|||
| 40 | WP13062602 | Support, Crisper Frame | |
|||
| 41 | WPW10738157 | Assembly, Tuck Shelf | |
|||
| 42 | WP67006104 | Tray, Lower (Replaces:13025201N) | |
|||
| 43 | WP67005923 | Front, Crisper Pan (Replaces:12802602SP) | |
|||
| 44 | W10891927 | Assembly, Fixed Shelf (Replaces:W10781754) | |
|||
| 16A | W10874836 | Endcap, Pantry (right Hand) (Replaces:W10845508) | |
|||
| 35A | WPW10474715 | Gear, Spur (right Hand) | |
|||
| 38A | W10348260 | Mount, Gear (right Hand) | |
