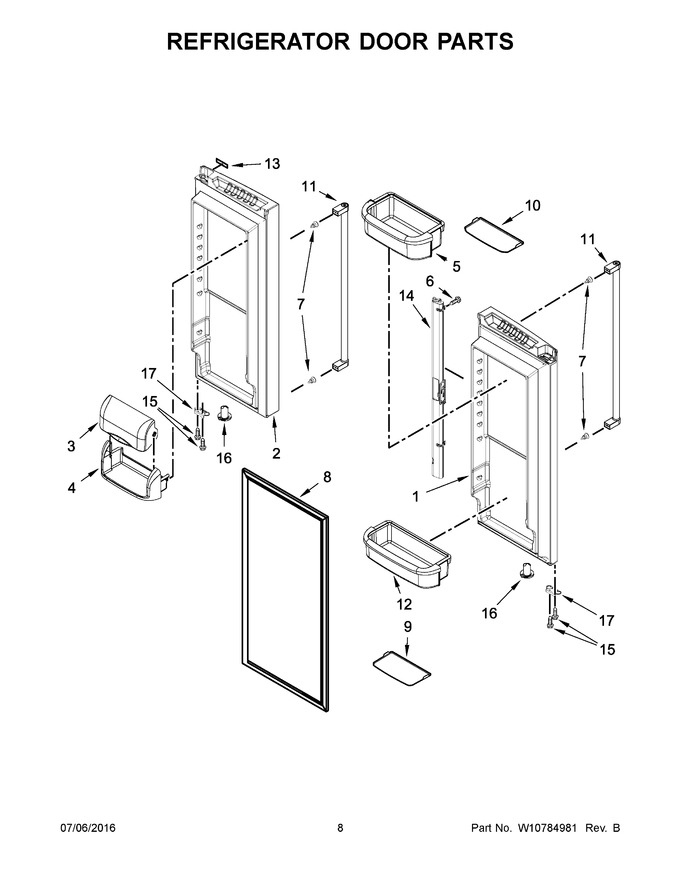

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 13107888WQ | Door, Left (white) (Replaces:13107888W) |  |
|||
| 2 | 13107887WQ | Door, Right (white) (Replaces:13107887W) | |
|||
| 3 | WP67003637 | Door, Dairy (Replaces:12804701SP) | |
|||
| 4 | WP67001279 | Tray, Dairy (Replaces:12369502SP) | |
|||
| 5 | WPW10371194 | Bucket, Medium | |
|||
| 6 | W11311945 | Screw (Replaces:12990204) | |
|||
| 7 | WPW10661886 | Screw (Replaces:W10460893) | |
|||
| 8 | W10830189 | Gasket, Door (white) | |
|||
| 9 | W11402028 | Gripper, Gallon (Replaces:W10449760) | |
|||
| 10 | WPW10450021 | Gripper, Medium | |
|||
| 11 | W11483532 | Handle, Door (stainless) (Replaces:W10775000) | |
|||
| 12 | WPW10289497 | Bucket, Gallon | |
|||
| 13 | W10876598 | Nameplate (grey) (Replaces:W10765861) | |
|||
| 14 | WP12722803W | Mullion, Door (white) | |
|||
| 15 | WP98165 | Screw (Replaces:12990504) | |
|||
| 16 | WP67003638 | Closure, Door (white) (Replaces:12028505W) | |
|||
| 17 | 12968202W | Stop, Door (white) | |
|||
| 14A | WP12722803B | Mullion, Door (black) (Replaces:12722803BN) | |
|||
| 14B | WP12722803AP | Mullion, Door (grey) (Replaces:12722803APN) | |
|||
| 16A | WP67003639 | Closure, Door (black) (Replaces:12028505B) | |
|||
| 16B | WP12028505AP | Closure, Door (grey) | |
|||
| 17A | W11708403 | Stop, Door (black) (Replaces:12968202B) | |
|||
| 17B | W11703060 | Stop, Door (grey) (Replaces:12968202AP) | |
|||
| 1A | 13107888BQ | Door, Left (black) (Replaces:13107888B) | |
|||
| 1B | 13107888SQ | Door, Left (stainless) (Replaces:13107888S) | |
|||
| 1C | W10919641 | Door, Left (black Stainless) (Replaces:W10879200) | |
|||
| 2A | 13107887BQ | Door, Right (black) (Replaces:13107887B) | |
|||
| 2B | 13107887SQ | Door, Right (stainless) (Replaces:13107887S) | |
|||
| 2C | W10919633 | Door, Right (black Stainless) (Replaces:W10879190) | |
|||
| 8A | W11368721 | Gasket, Door (black) (Replaces:W10830206) | |
|||
| 8B | W10830162 | Gasket, Door (grey) | |
