| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10544193 | Tech Sheet |  |
|||
| 2 | W11176463 | Elbow, Fill Tube (Replaces:10463203) | |
|||
| 3 | WP67003405 | Plate, Pivot (Replaces:12698403) | |
|||
| 4 | B5759655 | Gasket | |
|||
| 5 | 67005958 | Cover, Right Hinge (white) (Replaces:12962302W) | |
|||
| 6 | N/P | Cabinet (not A Serviceable Part) | |
|||
| 7 | W11456069 | Clamp, Tube (Replaces:M0108107) | |
|||
| 8 | WP98165 | Screw (Replaces:12990504) | |
|||
| 9 | WP8281196 | Screw (Replaces:12992602) | |
|||
| 10 | WP12963204ED | Hinge, Top (left Hand) | |
|||
| 11 | WP67006380 | Screw (stainless) (Replaces:W10673840) | |
|||
| 12 | W10296541 | Lid, Hv Control Box | |
|||
| 13 | WPW10337634 | Cover, Left Hinge (white) (Replaces:12962301W) | |
|||
| 14 | WP489349 | Screw (Replaces:12992403) | |
|||
| 15 | W10918113 | Hinge, Center (left) (white) (Replaces:13000001WD) | |
|||
| 16 | W10658542 | Block, Fill Tube | |
|||
| 17 | 12587703W | Cover, Corner (white) | |
|||
| 18 | 12961602 | Cover, Control Box | |
|||
| 19 | WPW10515763 | Assembly, Roller (left Hand) | |
|||
| 20 | 67006564 | Screw (Replaces:W10709365) | |
|||
| 21 | 12999501 | Shim, Hinge (left Hand) | |
|||
| 22 | WPW10534154 | Grille, Toe (white) | |
|||
| 23 | 67006429 | Gasket, Hv Box (Replaces:12957801SP) | |
|||
| 24 | WPA3223101 | Insert, Tube | |
|||
| 25 | 67006425 | Screw (Replaces:12990511) | |
|||
| 26 | 12726003 | Cover, Water Line | |
|||
| 27 | W10208593 | Guard, Dual Water Valve | |
|||
| 28 | W10854958 | Screw (Replaces:12990302) | |
|||
| 29 | W10528513 | Sweep, Dual Tube | |
|||
| 30 | WPW10211855 | Cover, Unit | |
|||
| 31 | WPW10317076 | Board, Hv Control | |
|||
| 32 | A3076901 | Plug, Button (black) | |
|||
| 33 | WPM0114003 | Clip, Speed | |
|||
| 34 | WPW10141622 | Brake, Roller | |
|||
| 35 | 12990702 | Screw | |
|||
| 36 | WPW10420083 | Valve, Water Inlet | |
|||
| 37 | W11120581 | Tubing, Plastic (Replaces:B5705333) | |
|||
| 38 | WP489128 | Screw (Replaces:12991604) | |
|||
| 10A | W11592374 | Hinge, Top (right Hand) (Replaces:12963205ED) | |
|||
| 13A | W10337647 | Cover, Left Hinge (black) (Replaces:12962301B) | |
|||
| 13B | WPW10337648 | Cover, Left Hinge (grey) (Replaces:12962301AP) | |
|||
| 15A | W10918164 | Hinge, Center (left) (black) (Replaces:13000007ED) | |
|||
| 15B | W10917988 | Hinge, Center (left) (grey) (Replaces:13000001AP) | |
|||
| 15C | 13000002WD | Hinge, Center (right) (white) | |
|||
| 15D | W10918164 | Hinge, Center (right) (black) (Replaces:13000008ED) | |
|||
| 15E | W10917988 | Hinge, Center (right) (grey) (Replaces:13000002AP) | |
|||
| 17A | 67003485 | Cover, Corner (black) (Replaces:12587703B) | |
|||
| 17B | WP12587703AP | Cover, Corner (grey) | |
|||
| 19A | WPW10515762 | Assembly, Roller (right Hand) | |
|||
| 1A | W10635370 | Use And Care Guide | |
|||
| 1B | W10739662 | Energy Guide | |
|||
| 21A | 12999502 | Shim, Hinge (right Hand) | |
|||
| 22A | WPW10534153 | Grille, Toe (black) | |
|||
| 22B | WPW10534155 | Grille, Toe (grey) | |
|||
| 5A | WP67005956 | Cover, Right Hinge (black) (Replaces:12962302B) | |
|||
| 5B | WPW10191117 | Cover, Right Hinge (grey) (Replaces:12962302AP) | |

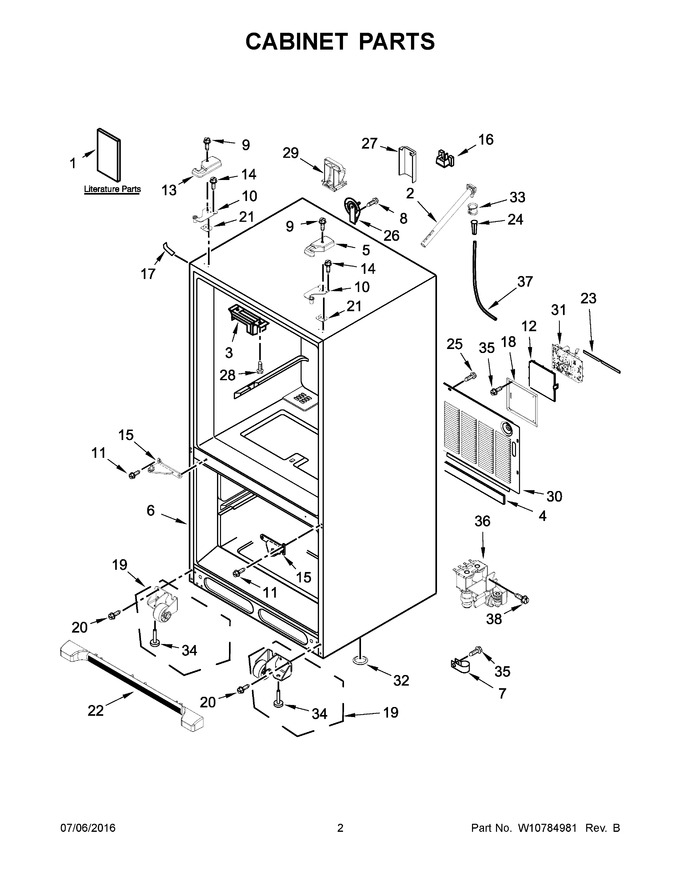

View Diagram in Separate Window
