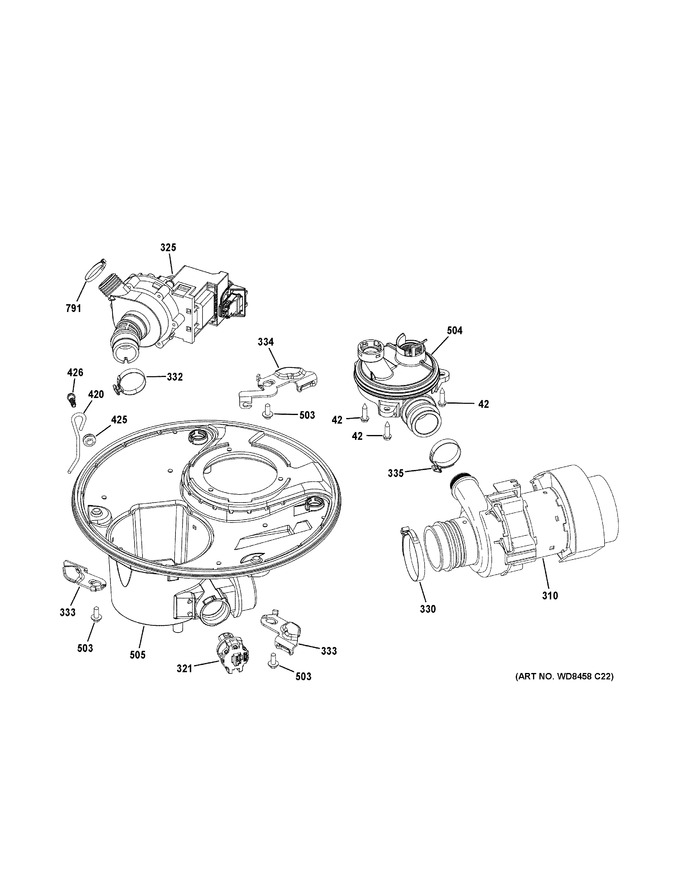

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 42 | WD02X22736 | Scr10 - 16 Ab Hxw 3/4 Ss |  |
|||
| 310 | WD26X22826 | Pump Wash Main Asm | |
|||
| 321 | WD21X22830 | Sensor Turbidity Asm | |
|||
| 325 | WD26X21697 | Pump Drain Asm | |
|||
| 330 | WD01X10571 | Clamp | |
|||
| 332 | WD01X10573 | Clamp | |
|||
| 333 | WD01X10632 | Latch Cam | |
|||
| 334 | WD01X10575 | Latch Cam | |
|||
| 335 | WD01X10572 | Clamp | |
|||
| 420 | WD01X10579 | Hanger Drain Pump | |
|||
| 425 | WD01X10101 | Grommet | |
|||
| 426 | WD02X22781 | Scr 10-18 X 5/8 | |
|||
| 503 | WB01T10103 | Scr 10-16 Ab Hxw .532 | |
|||
| 504 | WD18X21678 | Diverter Passive Main Asm | |
|||
| 505 | WD18X22782 | Sump Manifold | |
|||
| 791 | WD01X10611 | Clamp | |
