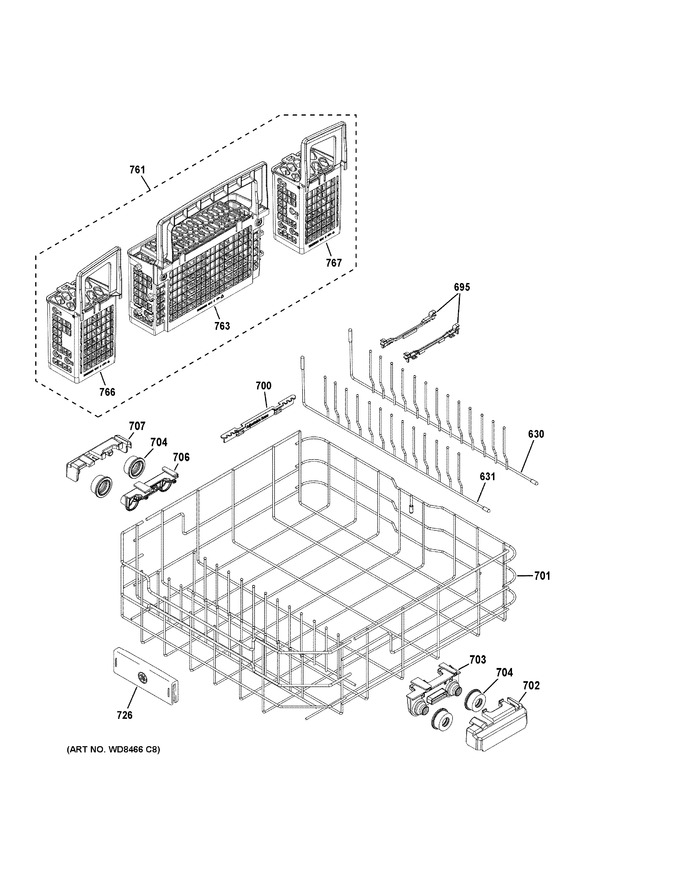

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 630 | WD28X20164 | Fdt Coated Lower Rack |  |
|||
| 631 | WD28X20165 | Fdt Coated Lower Rack | |
|||
| 695 | WD12X20171 | Clip Lower Rack | |
|||
| 700 | WD28X20166 | Indexer | |
|||
| 701 | WD28X22827 | Rack Lower Asm Coated | |
|||
| 702 | WD12X20161 | Cover Roller | |
|||
| 703 | WD12X20158 | Carrier Roller | |
|||
| 704 | WD12X10435 | Roller Lower Rack | |
|||
| 706 | WD12X20159 | Carrier Roller | |
|||
| 707 | WD12X20160 | Cover Roller | |
|||
| 726 | WD09X22840 | Rack Cover Handle | |
|||
| 761 | WD28X22624 | Silverware Basket Asm | |
|||
| 763 | WD28X22625 | Middle Silverware Basket Asm | |
|||
| 766 | WD28X20154 | Basket Asm Side | |
|||
| 767 | WD28X20155 | Basket Asm Side | |
