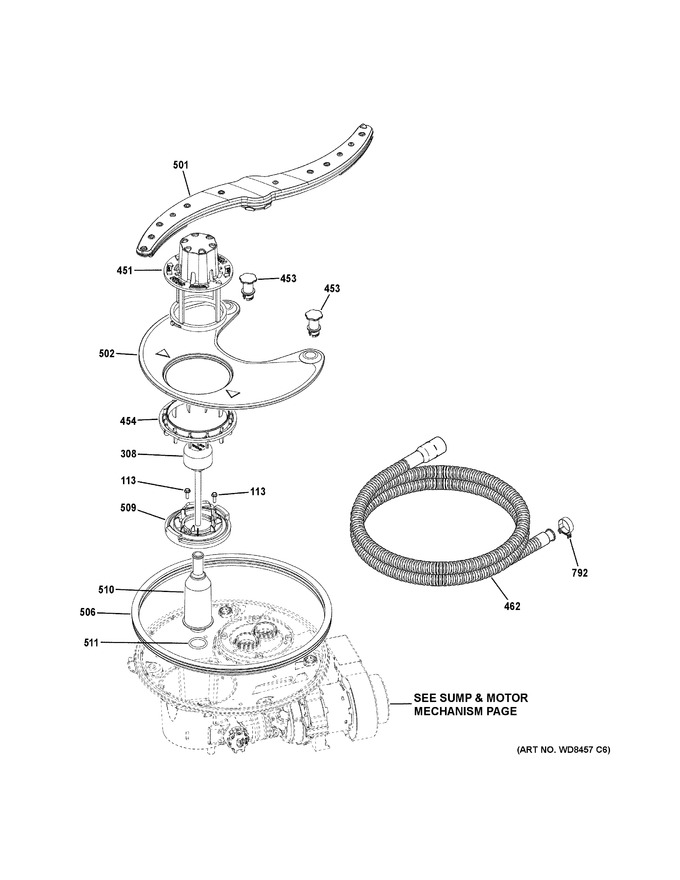

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 113 | WD02X10067 | Screw 8-16 Hxw 1/2 Ss |  |
|||
| 308 | WD21X22822 | Float Flood | |
|||
| 451 | WD12X22560 | Manual Clean Filter | |
|||
| 453 | WD24X10057 | Vent Filter | |
|||
| 454 | WD12X10419 | Adaptor Filter | |
|||
| 462 | WD24X10062 | Drain Tube Asm | |
|||
| 501 | WD22X10091 | Arm Spray Lower Asm | |
|||
| 502 | WD22X10093 | Filter Coarse Ss | |
|||
| 506 | WD08X21320 | Gasket Sump Manifold | |
|||
| 509 | WD12X21677 | Plate Floor Manual | |
|||
| 510 | WD21X22838 | Stem Flood | |
|||
| 511 | WD01X22825 | O Ring | |
|||
| 792 | WD01X10104 | Clamp | |
View Diagram in Separate Window
Print Part List
Move Mouse over Availability column to View Location Quantities-on-Hand
