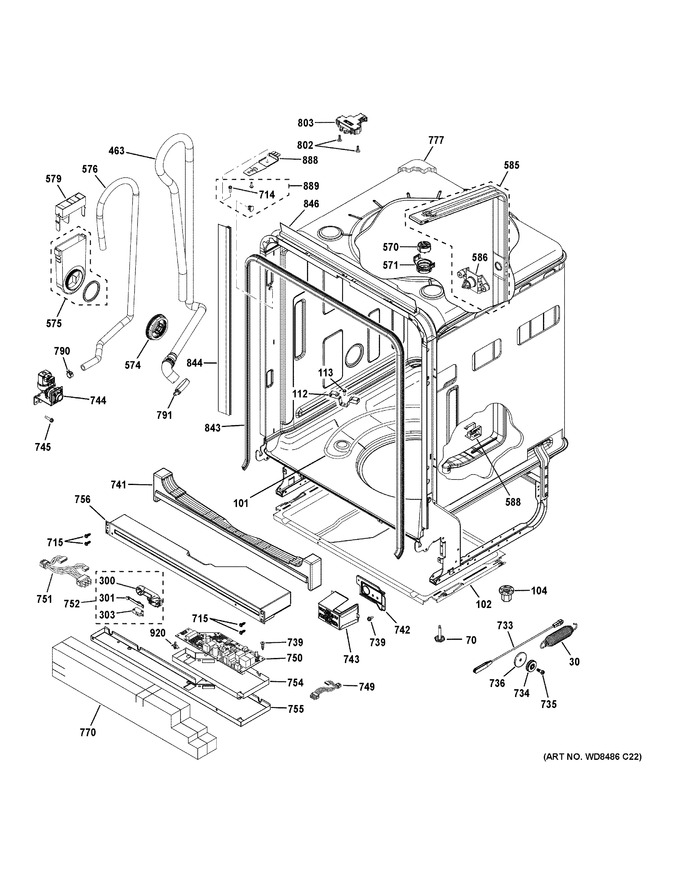

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 30 | WD03X20446 | Spring Door |  |
|||
| WD03X20316 | Spring Door | |
||||
| 70 | WD12X10417 | Screw Leveling | |
|||
| 101 | WD05X21716 | Element Heating Asm | |
|||
| 102 | WD18X22842 | Pan Leak | |
|||
| 104 | WD01X10070 | Nut Tower Heater | |
|||
| 112 | WD01X20120 | Support Heater Ss | |
|||
| 113 | WD02X10067 | Screw 8-16 Hxw 1/2 Ss | |
|||
| 300 | WD01X23496 | Housing Switch Flood | |
|||
| 301 | WD16X23497 | Lever Switch Flood | |
|||
| 303 | WD21X23498 | Switch Flood | |
|||
| 463 | WD24X10067 | Hose Loop Drain High | |
|||
| 570 | WD22X20689 | Impeller | |
|||
| 571 | WD22X20688 | Hub | |
|||
| 574 | WD01X20738 | Nut Water Inlet | |
|||
| 575 | WD12X21322 | Funnel And Gasket Asm | |
|||
| 576 | WD24X10064 | Hose Fill | |
|||
| 579 | WD12X20834 | Cap Fill Funnel | |
|||
| 585 | WD12X21681 | Conduit Main | |
|||
| 586 | WD12X20118 | Docking Port Ss | |
|||
| 588 | WD01X21855 | Clip Conduit | |
|||
| 714 | WD02X10160 | Scr 8-18 B Hxw .480 S | |
|||
| 715 | WD02X10220 | Scr 10-32 Gx Hxw 3/8 | |
|||
| 733 | WD01X22820 | Cable Asm Pulley | |
|||
| 734 | WD16X21836 | Pulley Hinge | |
|||
| 735 | WD01X21837 | Scr 10-32 Tt Cb 1/4 Zn | |
|||
| 736 | WD01X20593 | Friction Washer | |
|||
| 739 | WZ05X0158 | Screw 8-32x3/8 Grd Scr | |
|||
| 741 | WD01X21994 | Spacer Tub Front | |
|||
| 742 | WD12X10411 | Bracket Junction Box | |
|||
| 743 | WD12X10412 | Cover Junction Box | |
|||
| 744 | WD15X21340 | Valve Water Asm | |
|||
| 745 | WD01X22514 | Scr 10-32 Gx Ihxw 9/16 S | |
|||
| 749 | WD21X20215 | Harness Asm Jumper | |
|||
| 750 | WD21X22949 | Machine Control | |
|||
| 751 | WD21X22823 | Harness Asm Ac | |
|||
| 752 | WD21X22824 | Harness Asm Dc | |
|||
| 754 | WD01X21974 | Shield Dielectric | |
|||
| 755 | WD30X21714 | Control Box Bottom | |
|||
| 756 | WD27X10390 | Control Box Top | |
|||
| 770 | WD01X10629 | Barrier Toekick | |
|||
| 777 | WD01X21314 | Tub Insulation | |
|||
| 790 | WD01X22786 | Clamp Hose | |
|||
| 791 | WD01X10611 | Clamp | |
|||
| 802 | WR01X10380 | Scr 8-18 Ab Tsq 5/8 Ss | |
|||
| 803 | WD21X10490 | Latch Tub Side Standard | |
|||
| 843 | WD08X22095 | Gasket Tub Ss | |
|||
| 844 | WD08X10095 | Trim Tub Bk/ss | |
|||
| 846 | WD08X20719 | Trim Tub | |
|||
| 888 | WD01X21740 | Bracket Countertop | |
|||
| 889 | WD35X10383 | Ct Screw Asm | |
|||
| 920 | WD01X21975 | Clip Control Board | |
