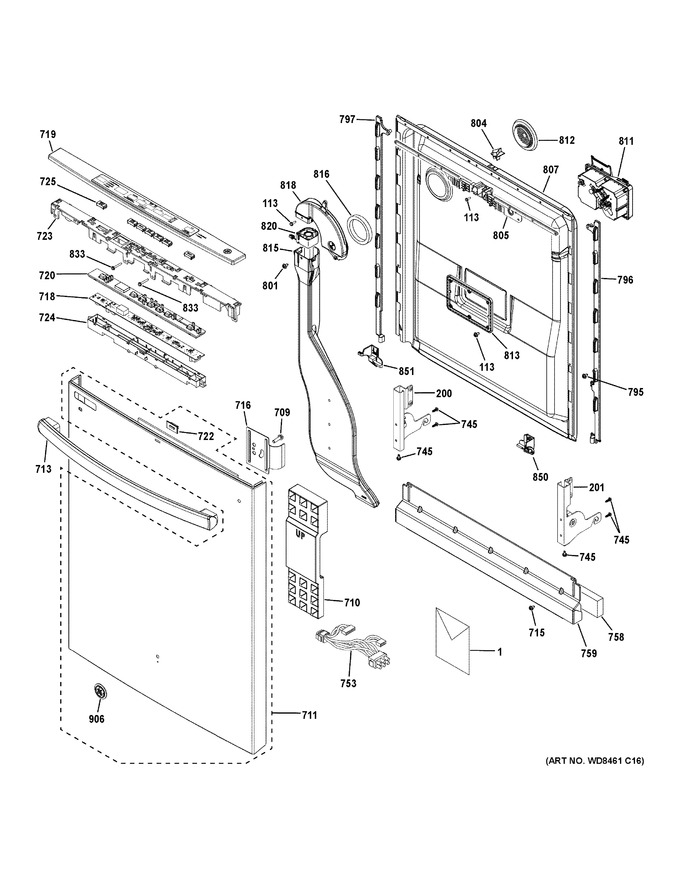

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Sump & Filter Assembly


6 - Sump & Motor Mechanism


Diagram #	Part Number		Description	Series	Find a Video
1	165D9739P031		Insert Mini Manual
	31-30792		Pm Mini-manual
	31-31560		Pm Install Instructions
	49-55101		Pm Owners Manual
113	WD02X10067		Screw 8-16 Hxw 1/2 Ss
200	WD14X22817		Arm Hinge Asm Lh
201	WD14X22816		Arm Hinge Asm Rh
709	WD01X20934		Scr 1/4-28 Fl Ihxw 15/16
710	WD01X10585		Block Foam Door
711	WD34X22800		Outer Door, Ss
713	WD09X21321		Door Handle Asm
715	WD02X10220		Scr 10-32 Gx Hxw 3/8
716	WD01X20135		Bracket Handle
718	WD21X22956		Ui Control Board
719	WD34X21699		Console Cvr Graphics Asm
720	WD12X21695		Silicone Light Pipe
722	WD09X20066		Lens And Adhesive Asm
723	WD12X20184		Console Top Control
724	WD12X10470		Housing Bottom
725	WD09X21694		Button And Graphic Asm
745	WD01X22514		Scr 10-32 Gx Ihxw 9/16 S
753	WD21X21664		Harness Asm Door
758	WD27X21334		Insulation Toe Kick
759	WD27X10392		Toe Kick Painted Asm
795	WD02X22628		Screw T15 8-16 Plastite 60-1
796	WD01X22836		Attach Strip Rh
797	WD01X10634		Attach Strip
801	WB02T10324		Scr 6-20 Gxb Ihxw 3/8 Ni
804	WD13X10071		Striker Latch
805	WD13X22837		Attachment Strip Top
807	WD31X22821		Door Inner Ss
811	WD12X22515		Module Detergent
812	WD24X20586		Cover Vent
813	WD12X10462		Plate Detergent
815	WD12X20218		Vent Conduit Asm
816	WD08X10092		Door Vent Seal
818	WD12X21356		Transition Piece Asm
820	WD24X20256		Vent Fan Asm
833	WD02X20140		Scr 10-16 Pl Pnt 2.25 S
850	WD12X22835		Trim Door Rh
851	WD12X22834		Trim Door Lh
906	WR04X10181		Badge Ge Asm
