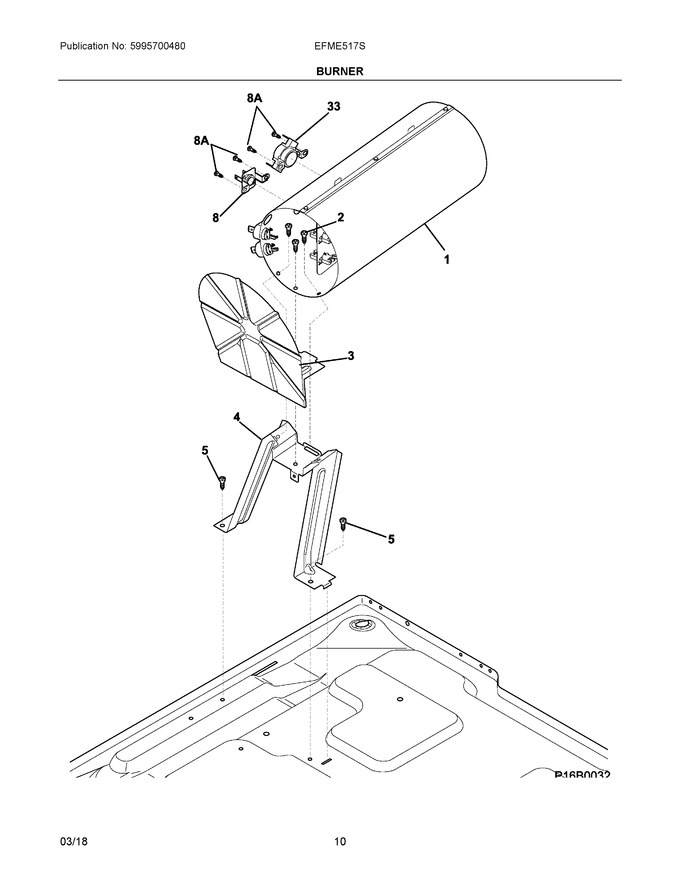

Diagram # Part Number Description Series Find a Video
1 137114000 Heater, 1 Element, 4700w Find a Video
2 131168200 Screw, Pan Head, 8-18b X 0.31 Find a Video
3 134692701 Shield, Radiant, Electric   (Replaces:134692700) Find a Video
4 134713901 Bracket, Heater/burner, Mounting   (Replaces:134713900) Find a Video
5 131202300 Screw, 10-16ab X 0.625 Find a Video
8 137032600 Limiter, Thermal, Heater Find a Video
33 3204267 Thermostat, Safety Find a Video
8A 134935200 Screw, #6 Pan Head, #8-32 X .25, Quadrex Find a Video

    View Diagram in Separate Window     Print Icon   Print Part List
  Move Mouse over Availability column to View Location Quantities-on-Hand

Diagram for EFME517SIW0
