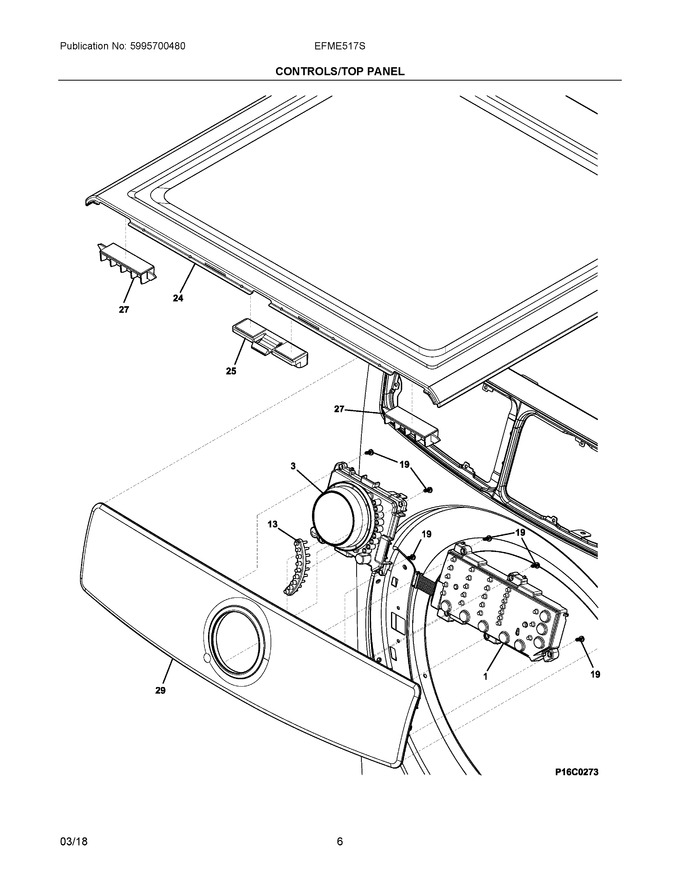

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 5304505611 | Board Assembly, Ui Programmed, Satellite, W/housing-screws |  |
|||
| 3 | 5304508432 | Knob Assembly, Complete, W/boards (Replaces:5304505018) | |
|||
| 13 | 5304505064 | Diffuser, Light | |
|||
| 19 | 5304505441 | Screw, Pph B, 6-20x.375 | |
|||
| 24 | 5304505081 | Top Panel, White | |
|||
| 25 | 5304505357 | Clip, Top, W/tape | |
|||
| 27 | 5304505423 | Block, Top, (2), W/tape | |
|||
| 29 | 5304505535 | Console Assembly, W/overlay | |
|||
| NI | 131168200 | Screw, Pan Head, 8-18b X 0.31 | |
|||
| 5304505232 | Harness, Wiring, Main | |
||||
| 134926600 | Damper, Sound | |
