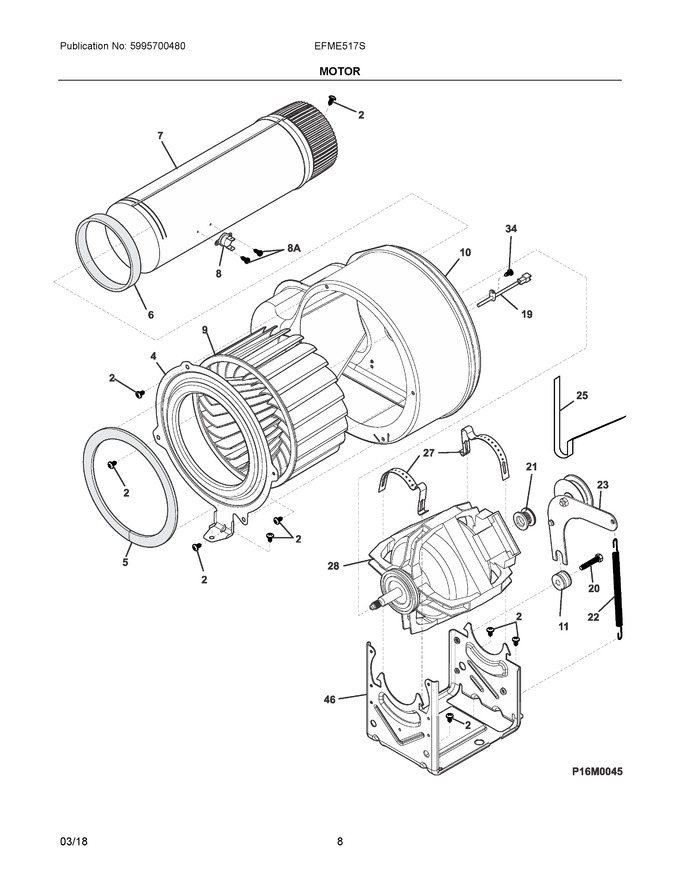

Diagram # Part Number Description Series Find a Video
2 131168200 Screw, Pan Head, 8-18b X 0.31 Find a Video
4 5304505074 Spacer, Blower Front, Air Duct Find a Video
5 5304505313 Gasket, Housing, Foam Find a Video
6 5304505318 Gasket, Spacer, Foam Find a Video
7 5304510135 Tube, Exhaust, Rear   (Replaces:134693901) Find a Video
8 134711401 Limiter, Thermal Exhaust, Flush Mount Find a Video
9 5304513609 Blower Wheel, Assembly   (Replaces:5304505079) Find a Video
10 5304505339 Blower Assembly, Airguide Find a Video
11 131749800 Spacer, Idler Find a Video
19 134711300 Thermister, Exhaust Find a Video
20 131017900 Bolt, Hex Head, 1/4-20t X 1.25, Thread Cutting Find a Video
21 134693800 Pulley, Motor Find a Video
22 131601000 Spring, Idler Arm Find a Video
23 134793511 Idler Arm Assy, W/pulley   (Replaces:134793500) Find a Video
25 134719300 Belt, "h", Poly V, 5 Rib Find a Video
27 134242400 Clamp, Motor Mtg. Find a Video
28 5304529782 Motor, Main Drive, 115v 60hz   (Replaces:134693300) Find a Video
34 215822000 Screw, Pan Head, 8-18ab X 0.375   (Replaces:131243700) Find a Video
46 5304505075 Bracket, Motor Find a Video
8A 134935200 Screw, #6 Pan Head, #8-32 X .25, Quadrex Find a Video

    View Diagram in Separate Window     Print Icon   Print Part List
