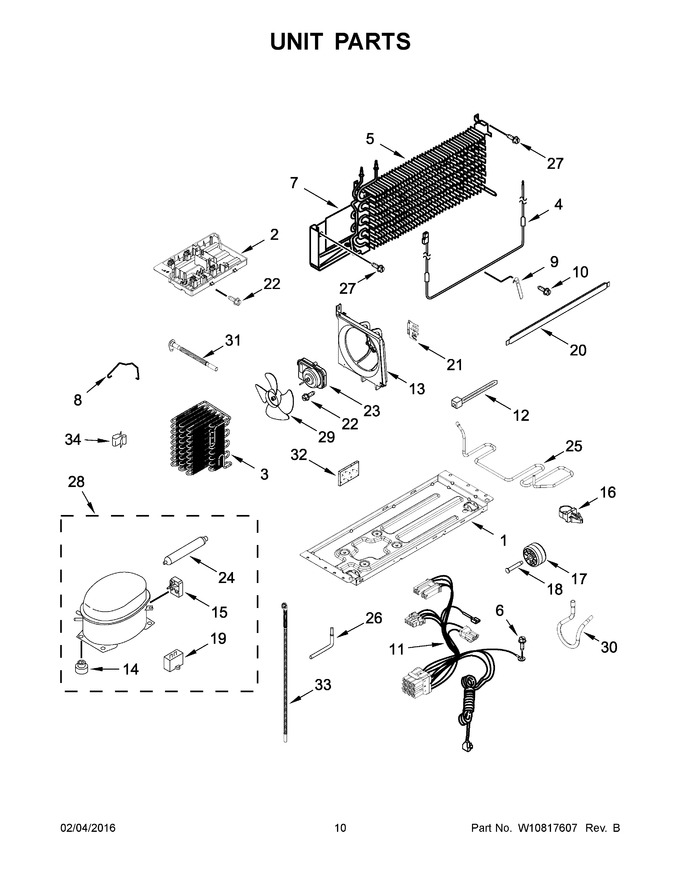

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10638694 | Support Plate, Compressor | ![]() |
|||
| 2 | W10633582 | Tray, Evaporator | ![]() |
|||
| 3 | W11512423 | Condenser (Replaces:W10633575) | ![]() |
|||
| 4 | WPW10316428 | Heater, Defrost | ![]() |
|||
| 5 | W10836706 | Assembly, Evaporator (Replaces:W10570565) | ![]() |
|||
| 6 | WP489128 | Screw (Replaces:488500) | ![]() |
|||
| 7 | WPW10314195 | Shield, Heat | ![]() |
|||
| 8 | W11661170 | Strap, Bale (Replaces:W10174384) | ![]() |
|||
| 9 | W10856574 | Heat Probe (Replaces:2258429) | ![]() |
|||
| 10 | W11807361 | Screw (Replaces:489478) | ![]() |
|||
| 11 | WP489478 | Harness, Unit | ![]() |
|||
| 12 | W11611445 | Tie, Wire (Replaces:2263990) | ![]() |
|||
| 13 | WPW10339879 | Bracket, Fan (Replaces:W10633579) | ![]() |
|||
| 14 | W11736795 | Grommet (Replaces:2183042) | ![]() |
|||
| 15 | 4388295 | Device, Start (Replaces:W10448874) | ![]() |
|||
| 16 | WPW10448874 | Clip, Harness | ![]() |
|||
| 17 | 2219077 | Roller | ![]() |
|||
| 18 | WPW10475495 | Axle, Rivet | ![]() |
|||
| 19 | W11594405 | Capacitor (Replaces:W10590083) | ![]() |
|||
| 20 | WPW10662129 | Cover, Heater (Replaces:W10300902) | ![]() |
|||
| 21 | W10300902 | Bracket, Evaporator | ![]() |
|||
| 22 | W10314197 | Screw | ![]() |
|||
| 23 | W10829281 | Motor, Condenser Fan (Replaces:W10527155) | ![]() |
|||
| 24 | W11127829 | Drier (Replaces:W10669573) | ![]() |
|||
| 25 | W10843121 | Tube, Discharge (Replaces:W10633584) | ![]() |
|||
| 26 | W10633584 | Tube, Process | ![]() |
|||
| 27 | 2212848 | Screw | ![]() |
|||
| 28 | WP489442 | Compressor | ![]() |
|||
| 29 | W10233960 | Blade, Fan (Replaces:W10139483) | ![]() |
|||
| 30 | WPW10139483 | Tube, Suction | ![]() |
|||
| 31 | W10633577 | Extension, Drain Tube | ![]() |
|||
| 32 | W10646247 | Insulation, Sound | ![]() |
|||
| 33 | W11553819 | Tube, Drain (Replaces:W10633573) | ![]() |
|||
| 34 | W10633573 | Clip, Wire | ![]() |
|||
| NI | W10812039 | Valve, Access (Replaces:978027) | ![]() |
|||
| 978027 | Valve, Access | ![]() |
||||
| 978028 | Valve, Access | ![]() |
||||
| 978029 | Valve, Access | ![]() |
||||
| 978030 | Valve, Access | ![]() |
||||
| 876764 | Valve, Access | ![]() |
||||
| WP978025 | Valve, Access | ![]() |
||||
| 978026 | Refrigerant Charge 4.2 Oz (r-134a) | ![]() |
||||
