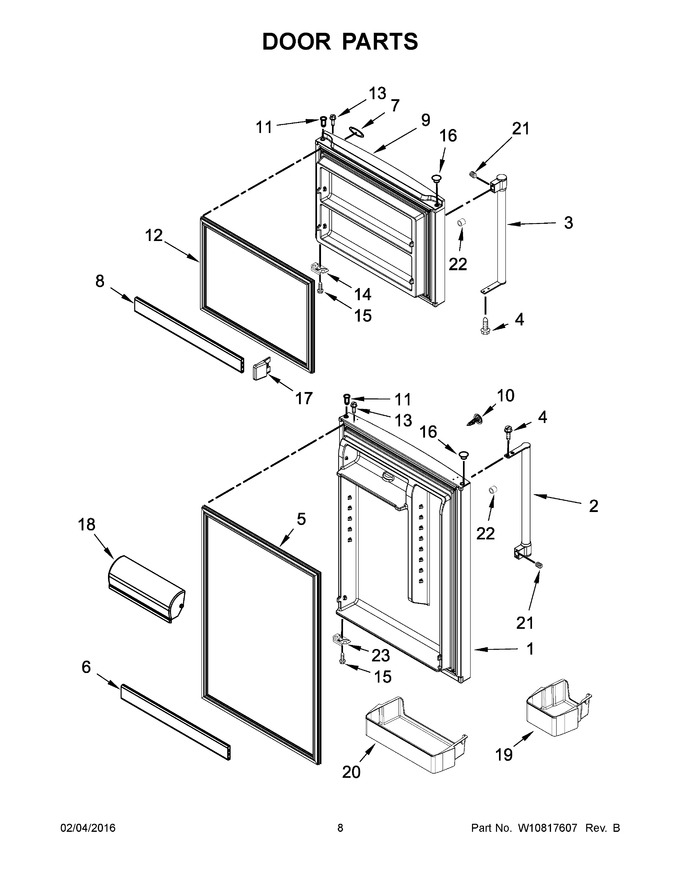

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | LW10636232 | Refrigerator Door (includes Illustration 5) (white) (Replaces:W10636232) |  |
|||
| 2 | W10647954 | Handle, Door (neptune Frost) | |
|||
| 3 | W10647957 | Handle, Door (neptune Frost) | |
|||
| 4 | WP489357 | Screw | |
|||
| 5 | W10838574 | Door Gasket, Magnetic (white) (Replaces:W10638676) | |
|||
| 6 | W10592149 | Trim, Door Rc | |
|||
| 7 | WPW10612925 | Badge | |
|||
| 8 | W10592151 | Trim, Door Fc | |
|||
| 9 | LW10636404 | Freezer Door (includes Illustration 12) (white) (Replaces:W10636404) | |
|||
| 10 | W10830984 | Hole Plug (white) (Replaces:W10663736) | |
|||
| 11 | W10492018 | Thimble-top (white) | |
|||
| 12 | W10861499 | Door Gasket, Magnetic (white) (Replaces:W10638675) | |
|||
| 13 | WP8281206 | Screw | |
|||
| 14 | W11745278 | Bracket, Door Stop (Replaces:2189202) | |
|||
| 15 | WP4449746 | Screw (Replaces:8533904) | |
|||
| 16 | WP2212648 | Hole Plug (white) | |
|||
| 17 | W10838039 | Cap, Trim End (Replaces:W10592153) | |
|||
| 18 | W11675283 | Compartment, Door (Replaces:W10601425) | |
|||
| 19 | WPW10308867 | Bin Short | |
|||
| 20 | WPW10308868 | Bin, Large Door | |
|||
| 21 | W11366418 | Set Screw (silver) (Replaces:W10010140) | |
|||
| 22 | WPW10170540 | Screw | |
|||
| 23 | W11402852 | Bracket, Door Stop (Replaces:W10638692) | |
|||
| 10A | W10830983 | Hole Plug (black) (Replaces:W10663737) | |
|||
| 10B | W10830982 | Hole Plug (grey) (Replaces:W10663739) | |
|||
| 11A | W11189115 | Thimble-top (black) (Replaces:W10334042) | |
|||
| 11B | W11676573 | Thimble-top (grey) (Replaces:W10492022) | |
|||
| 12A | W11229610 | Door Gasket, Magnetic (black) (Replaces:W10667843) | |
|||
| 12B | W11036546 | Door Gasket, Magnetic (grey) (Replaces:W10638686) | |
|||
| 16A | WP2212651 | Hole Plug (black) | |
|||
| 16B | WP2254517 | Hole Plug (grey) | |
|||
| 1A | LW10672970 | Refrigerator Door (includes Illustration 5) (black) (Replaces:W10672970) | |
|||
| 1B | LW10672972 | Refrigerator Door (includes Illustration 5) (stainless) (Replaces:W10672972) | |
|||
| 5A | W11240749 | Door Gasket, Magnetic (black) (Replaces:W10678768) | |
|||
| 5B | W11028007 | Door Gasket, Magnetic (grey) (Replaces:W10638687) | |
|||
| 9A | LW10672964 | Freezer Door (includes Illustration 12) (black) (Replaces:W10672964) | |
|||
| 9B | LW10672966 | Freezer Door (includes Illustration 12) (stainless) (Replaces:W10672966) | |
