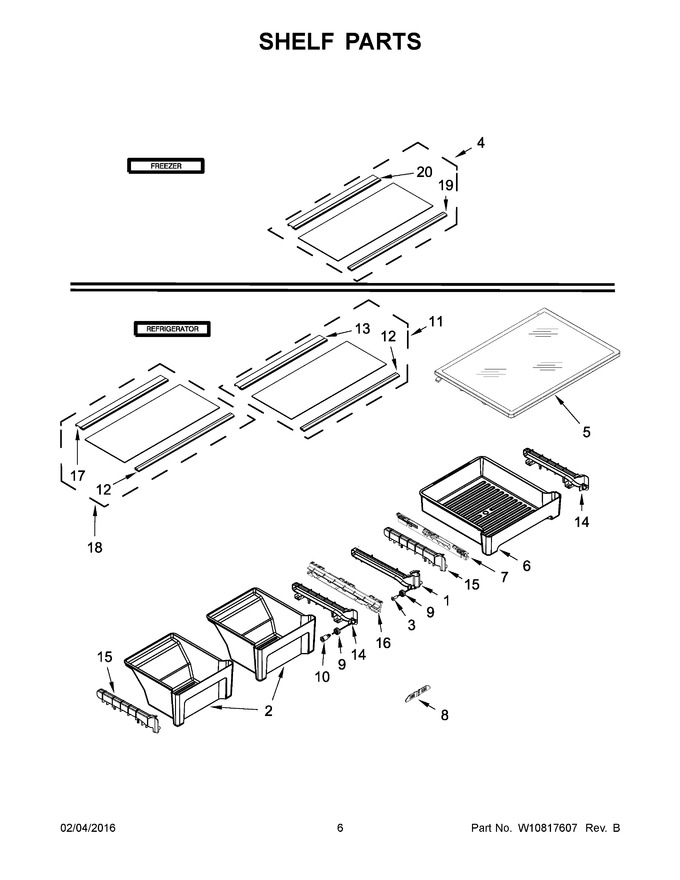

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W11773992 | Track, Rail Center (Replaces:W10694127) |  |
|||
| 2 | W10860753 | Assembly, Crisper Pan (Replaces:W10668872) | |
|||
| 3 | WP3400065 | Screw (stainless) | |
|||
| 4 | W10869725 | Assembly, Shelf (Replaces:W10809781) | |
|||
| 5 | WPW10704017 | Assembly, Shelf | |
|||
| 6 | WPW10308848 | Meat Pan | |
|||
| 7 | WPW10468555 | Rail, Track (left Hand) | |
|||
| 8 | W11590562 | Control, Humidity (Replaces:W10356844) | |
|||
| 9 | W11164152 | Roller, Pan (Replaces:W10628713) | |
|||
| 10 | W11175807 | Axle, Roller (Replaces:W10628712) | |
|||
| 11 | W10869727 | Assembly, Shelf (Replaces:W10821670) | |
|||
| 12 | W10809771 | Trim, Shelf Front | |
|||
| 13 | W11167827 | Trim, Shelf Rear (Replaces:W10628686) | |
|||
| 14 | W11084244 | Rail, Track (right Hand) (Replaces:W10694126) | |
|||
| 15 | W11595232 | Rail, Track (left Hand) (Replaces:W10694125) | |
|||
| 16 | W11025414 | Rail, Track (right Hand) (Replaces:W10468556) | |
|||
| 17 | WPW10468556 | Trim, Shelf Rear | |
|||
| 18 | W10730133 | Assembly, Shelf | |
|||
| 19 | W10869728 | Trim, Shelf Front (Replaces:W10809770) | |
|||
| 20 | W10809770 | Trim, Shelf Rear | |
|||
| W10628690 | |
