| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10770168 | Service & Wiring Sheet |  |
|||
| 2 | WPW10300065 | Assembly, Top Right Hinge | |
|||
| 3 | W11256723 | Assembly, Roller (Replaces:W10842654) | |
|||
| 4 | N/P | Cabinet (not Serviced) | |
|||
| 5 | WP489442 | Screw | |
|||
| 6 | N/P | Rail, Center (not Serviced) | |
|||
| 7 | WP489497 | Screw | |
|||
| 8 | WP2254618 | Hinge, Center | |
|||
| 9 | WP2183852 | Shim, Hinge Center | |
|||
| 10 | W11096015 | Lower Hinge And Roller Assembly (Replaces:W10843861) | |
|||
| 11 | WPW10520304 | Hole Plug (white) | |
|||
| 12 | WPW10279909 | Valve, Inlet (Replaces:W10498995) | |
|||
| 13 | WP489467 | Washer, Plastic (Replaces:489341) | |
|||
| 14 | WP3196256 | Clamp, Power Cord (Replaces:549193) | |
|||
| 15 | WPW10475495 | Roller | |
|||
| 16 | W10338247 | Shim, Top Hinge | |
|||
| 17 | W11476772 | Cover, Unit (Replaces:W10633591) | |
|||
| 18 | W11594405 | Axle, Roller (Replaces:981126) | |
|||
| 19 | WP2174706 | Clip, Roller | |
|||
| 20 | W10846529 | Dome Cap (white) (Replaces:W10674771) | |
|||
| 21 | W10847959 | Dome Cap, Washer (Replaces:W10674773) | |
|||
| 22 | W10854419 | Leveler (Replaces:W10671258) | |
|||
| 23 | W11026307 | Hinge Pin (Replaces:W10638688) | |
|||
| 11A | WPW10520305 | Hole Plug (black) | |
|||
| 11B | WPW10520307 | Hole Plug (grey) | |
|||
| 1A | W10680118 | Use & Care Guide | |
|||
| 1B | W10685260 | Energy Guide | |
|||
| 20A | W10853677 | Dome Cap (black) (Replaces:W10679135) | |
|||
| 20B | W10849198 | Dome Cap (grey) (Replaces:W10679139) | |

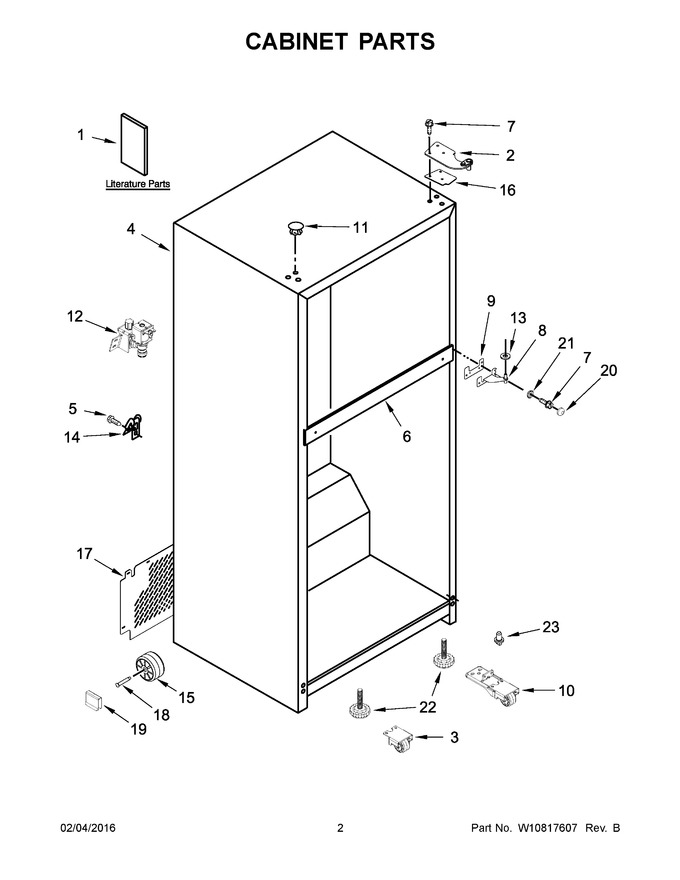

View Diagram in Separate Window
